Kee Pivot® Pallet Gates

Mezzanine Safety Gates

Designed to provide safe access for factory and warehouse workers who are responsible for loading and unloading pallets onto mezzanine floors or raised working surfaces.

Overview Benefits Standards FAQs Case Studies Downloads Gallery

Raising the bar of safety

Moving pallets around factories and warehouses can cause several safety issues. When a worker needs to load and unload pallets on mezzanine floors, they could end up falling from a height. Kee Pivot® gates eliminate this safety issue. A simple solution that results in employees always being separated from the hazard.
Pallet Gate | Mezzanine Palet Gate | Kee Gate | Kee Pivot
CTA Safety Experts 2

Get in touch with our safety experts

Why do you need Kee Pivot® Safety Gates?


Our pallet gates are designed to fit seamlessly into a new or existing guardrail or barrier and ensure there is continuous protection in place while goods are being moved either up to or down from the mezzanine.

Multiple Configurations

The Kee Pivot® gates are available in five configurations to provide flexibility whether you require extra width, depth or a combination of both.

Easy Maintenance

Kee Pivot® pallet gates are constructed using Kee Klamp® and Kee Lite® fittings. Due to the nature of the system, if the gate is damaged from a forklift or general use, the individual fittings can be easily replaced.

Key Features

No Welded Parts

Any damage can be easily repaired, keeping the gate operational.

Steel or Aluminium

Available in galvanised steel or aluminium depending on requirements.

Low Maintenance

Minimal number of moving parts for lower maintenance.

Quick to install

Will be supplied part assembled to help with on-site installation.

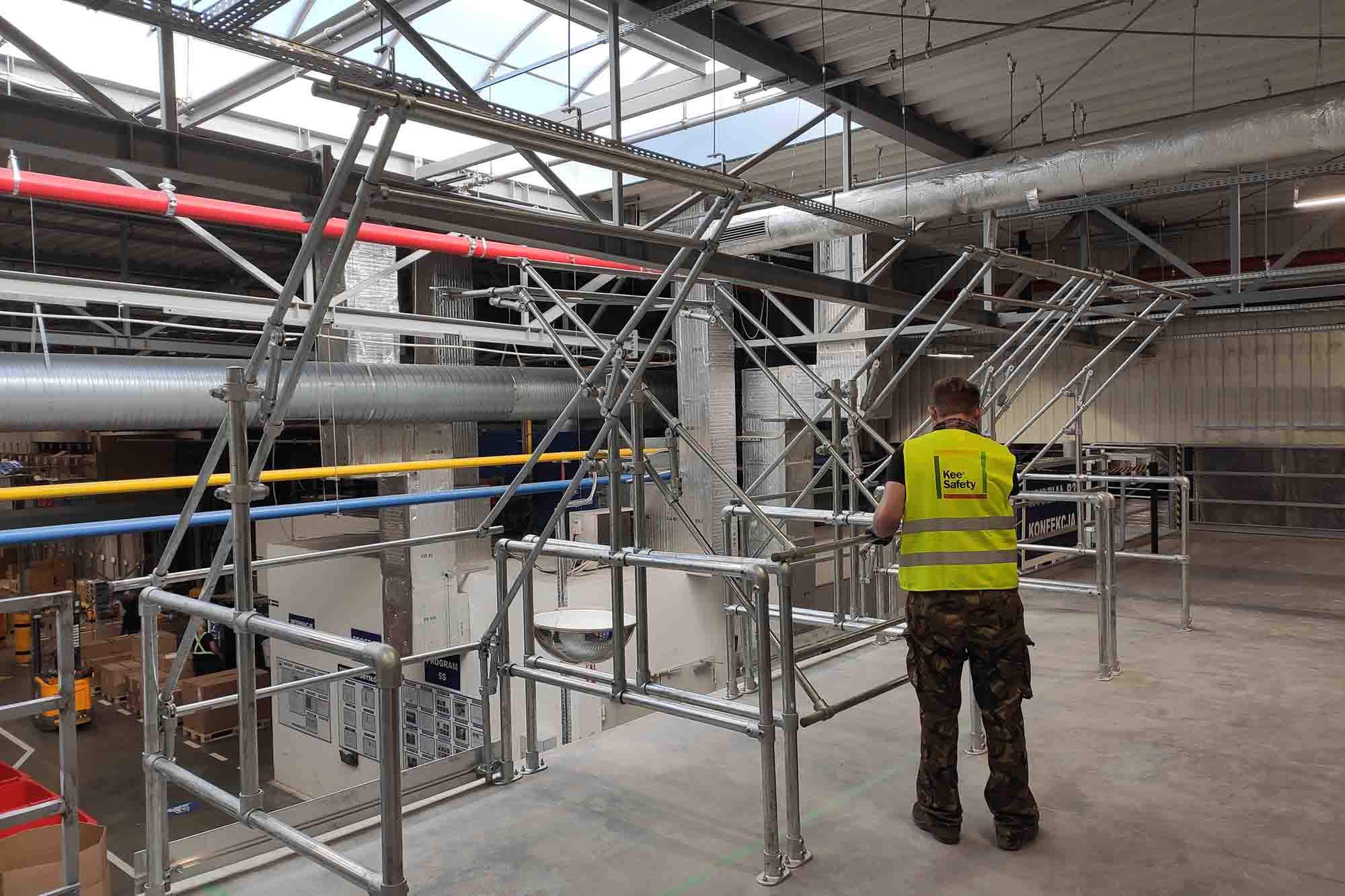

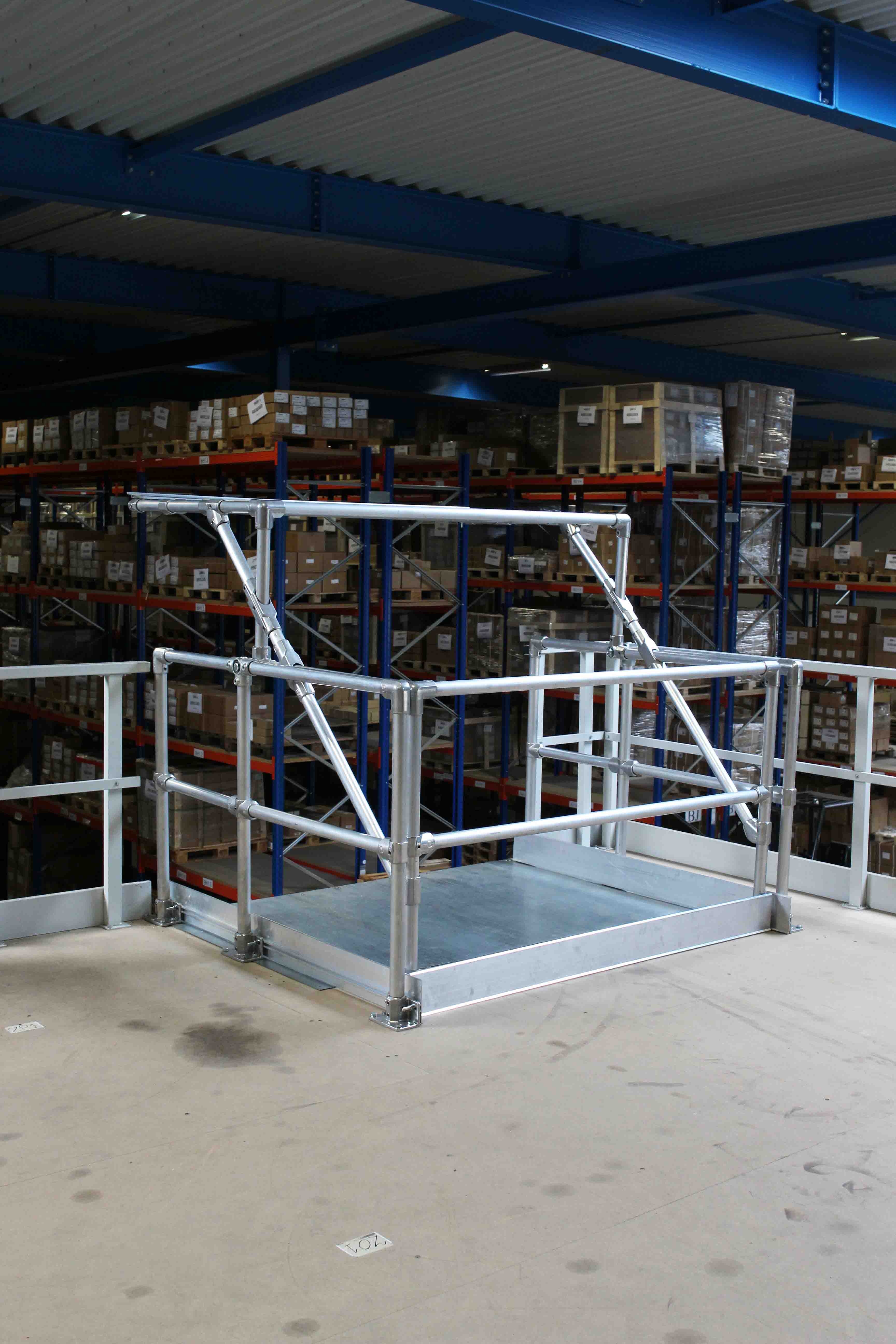

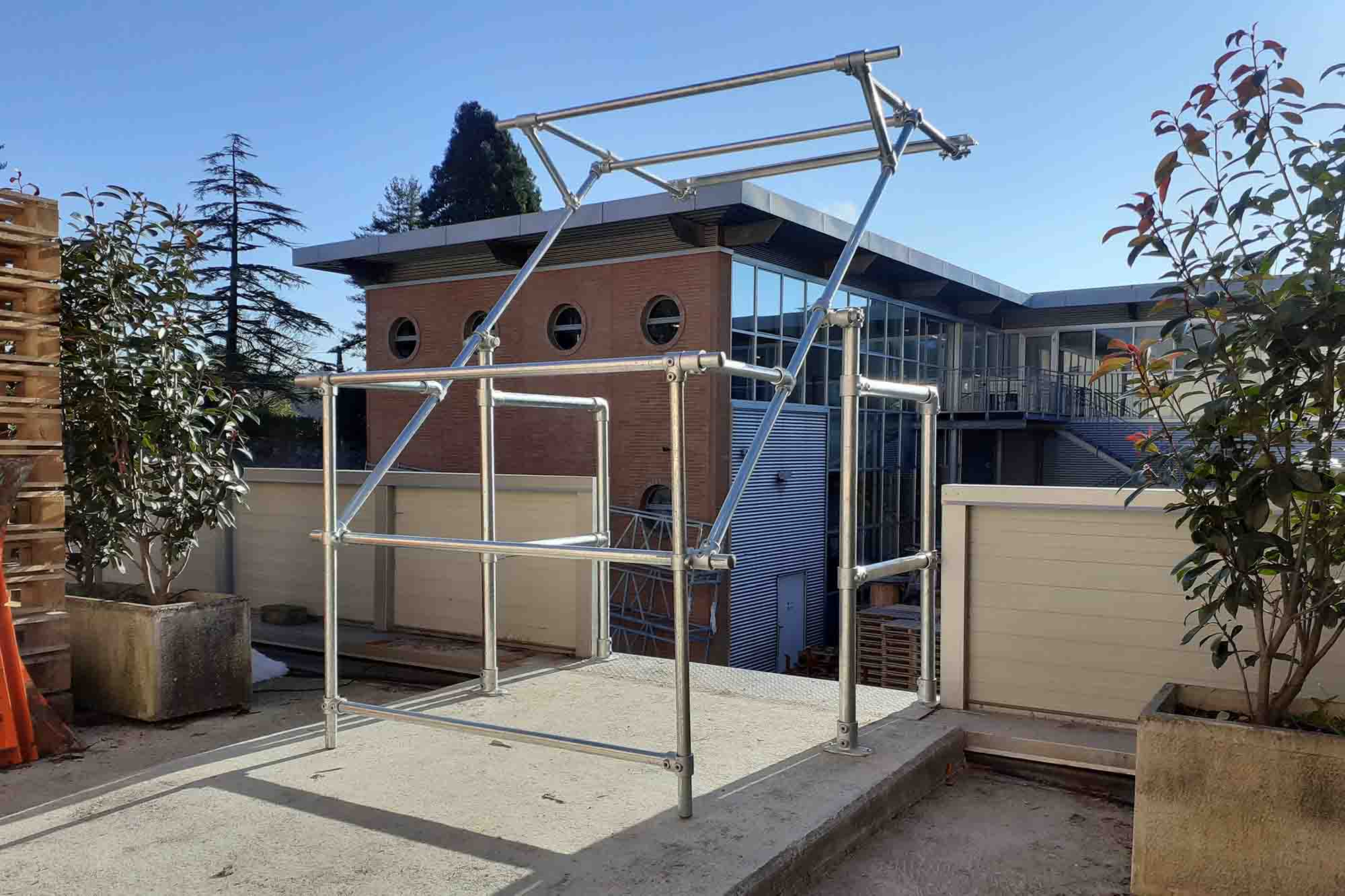

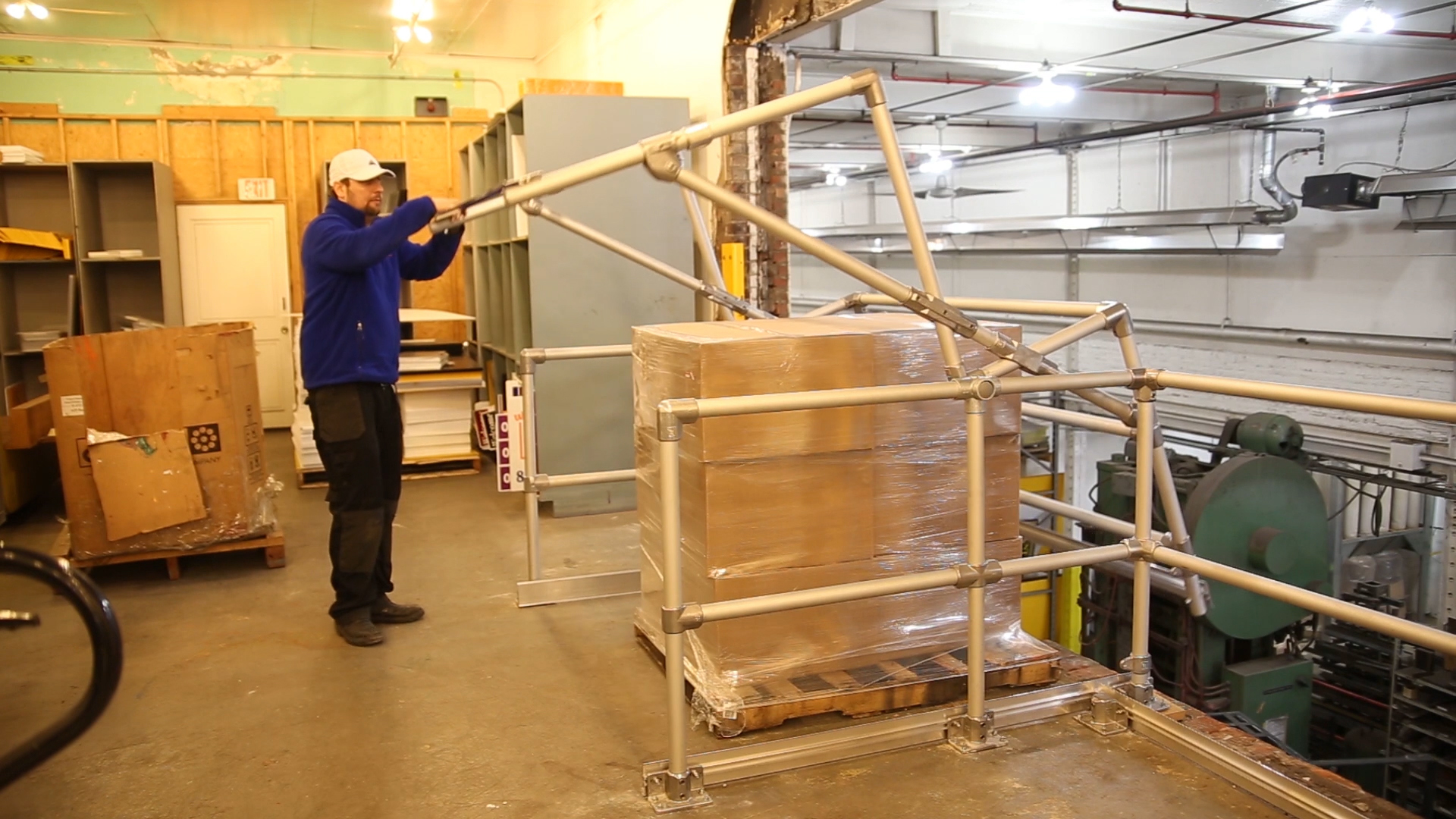

Kee Pivot® Gate in Action

Highest standards for access safety

  • Compliant with BS EN 14122-3 and OSHA requirements for assured safe operation
  • Built using Kee Klamp and Kee Lite fittings, TUV approved components for quality assurance

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centers at its UK Head Office. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.

Choose from Six Configurations

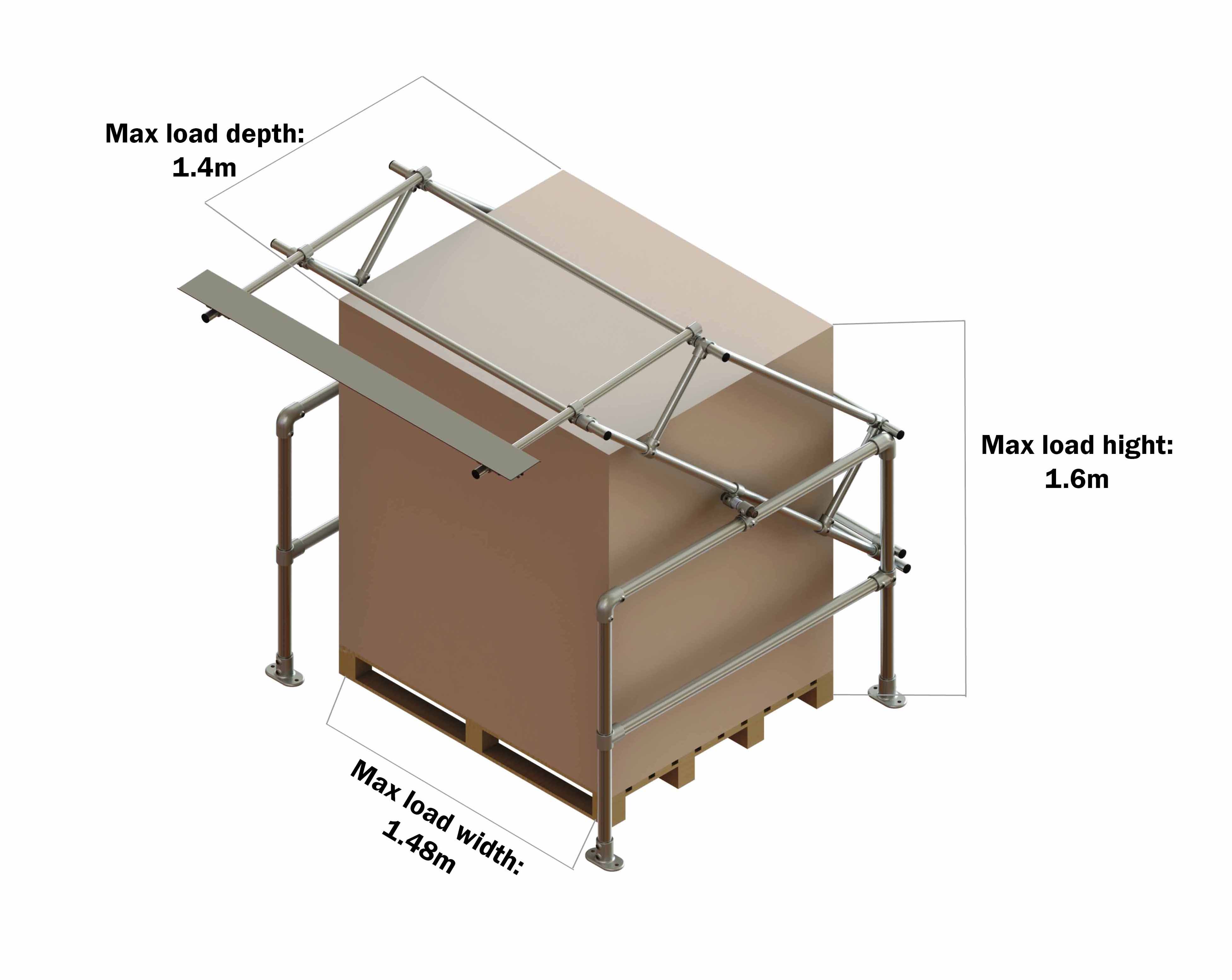

Pallet Gate Standard Size | Mezzanine Gate Standard Size

Standard Pallet Gate - Type A

Max. load width: 1.48m x Max. load depth: 1.40m x Max. load height: 1.60m

Space requirements (excluding pallets):

Width: 1.48m x Depth: 1.41m xHeight: 1.97m

Pallet Gate Type B W

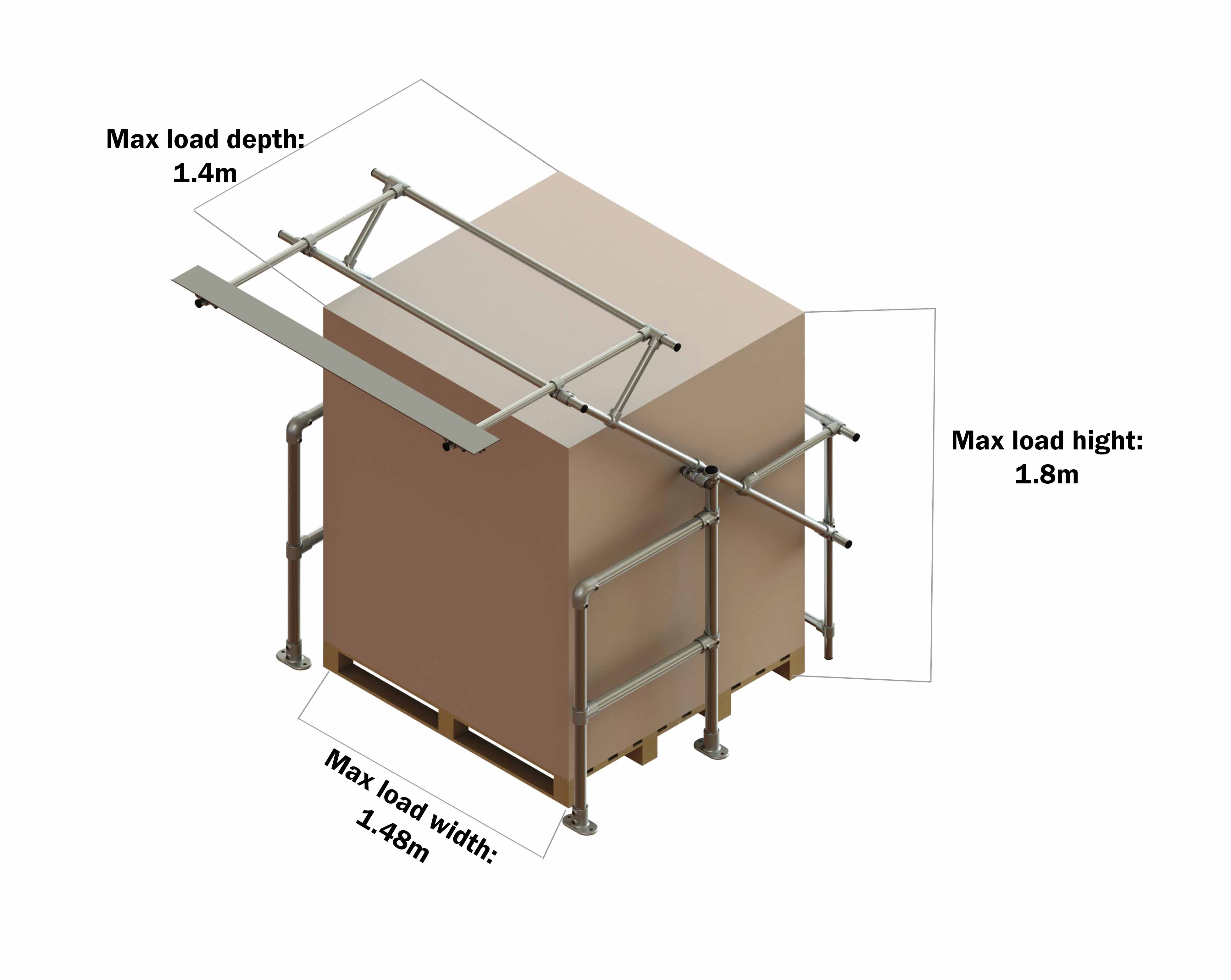

Narrow Pallet Gate - Type B

Max. load width: 1.48m x Max. load depth: 1.40m x Max. load height: 1.80m

Space requirements (excluding pallets):

Width: 1.60m x Depth: 0.75m x Height: 2.08m

Tall Load Pallet Gate | Tall Load Mezzanine Gate

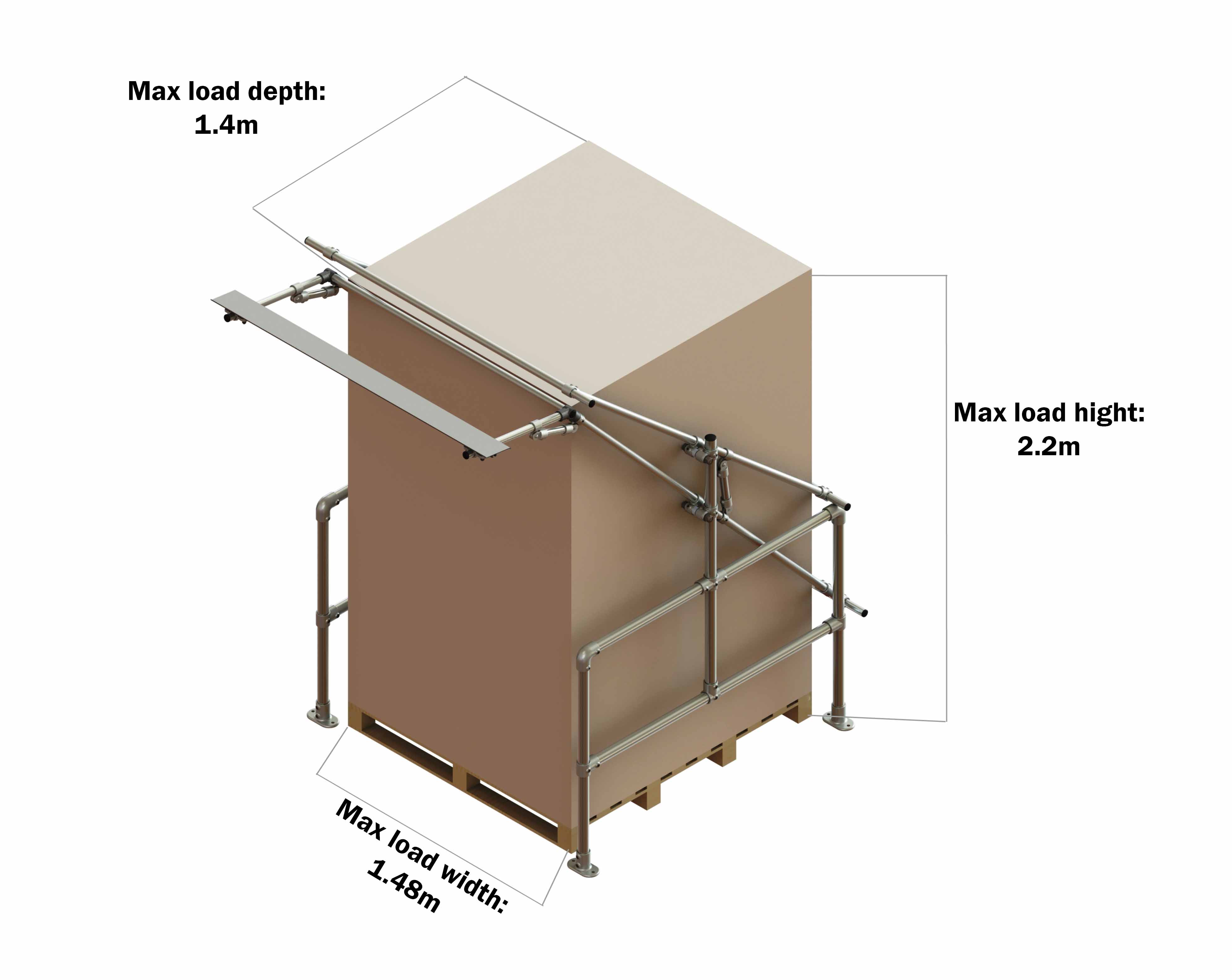

Tall Load Pallet Gate - Type C

Max. load width: 1.48m x Max. load depth: 1.40m x Max. load height: 2.20m

Space requirements (excluding pallets)

Width: 1.60m x Depth: 1.53m x Height: 2.50m

Wide Load Pallet Gate | Wide Load Mezzanine Gate

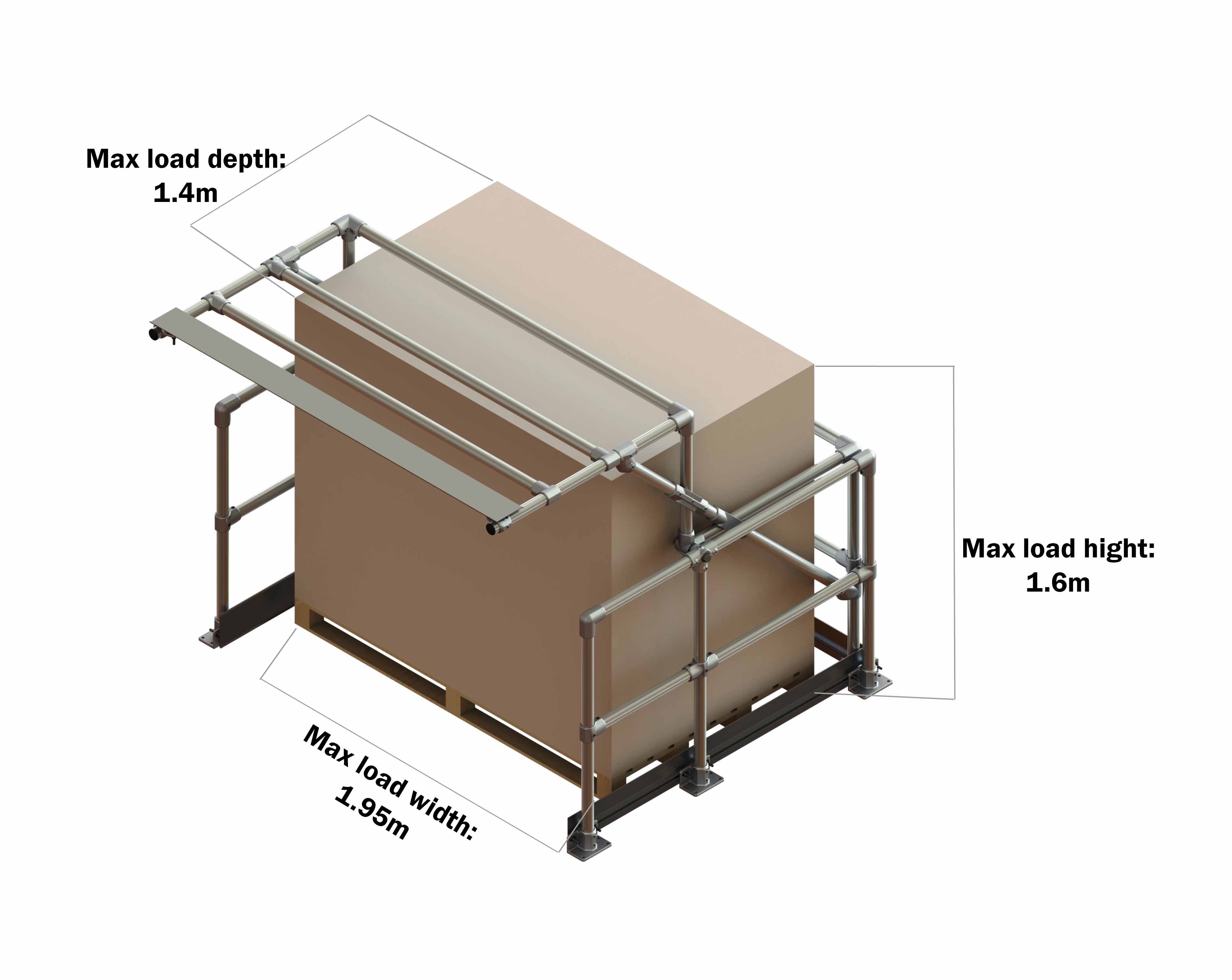

Wide Load Pallet Gate - Type D

Max. load width: 1.90m x Max. load depth: 1.40m x Max. load height: 1.60m

Space requirements (excluding pallets)

Width: 2.02m x Depth: 1.57m x Height: 2.01m

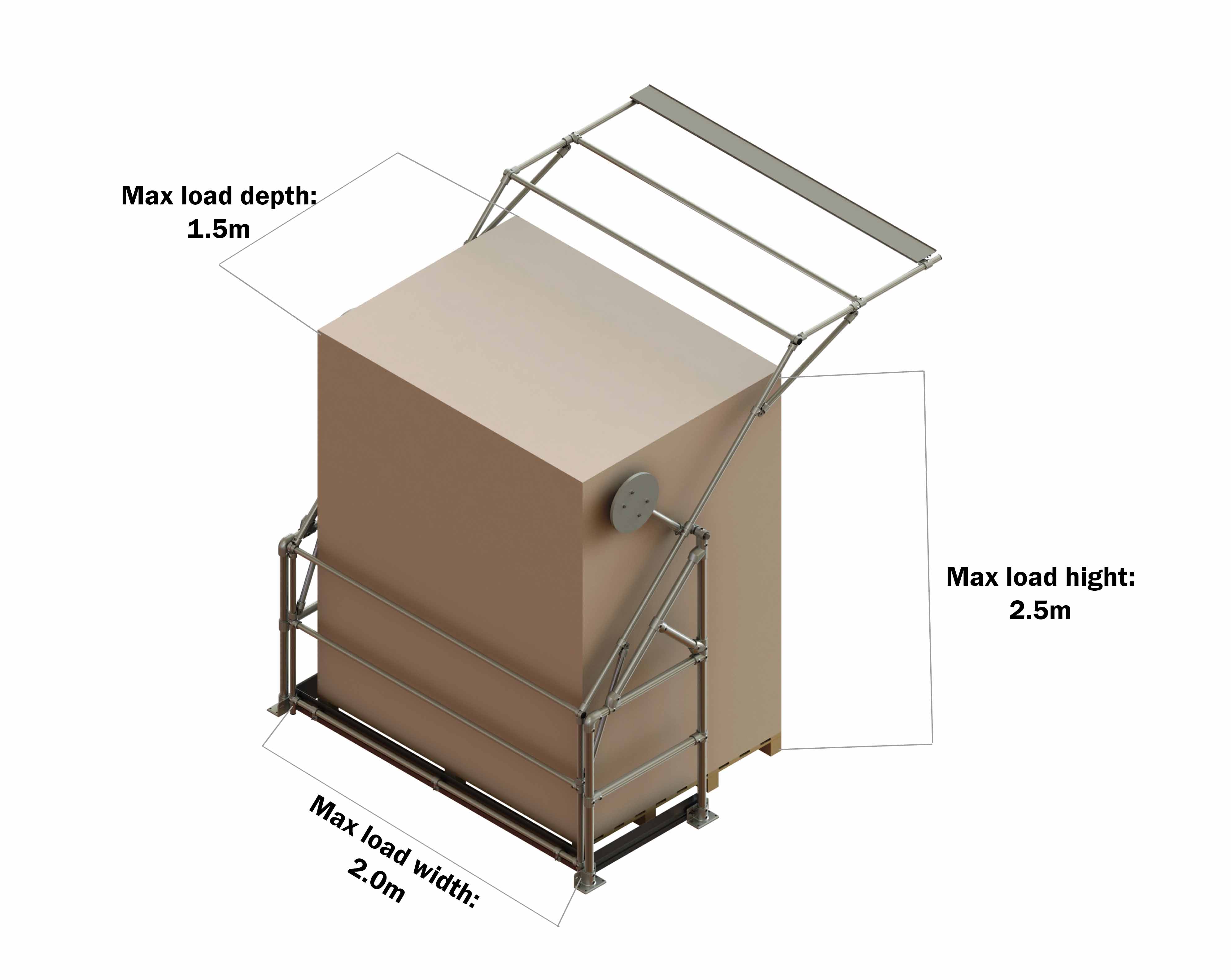

Pallet Gate With Weights | Mezzanine Gate With Weights

Pallet Gate With Weights - Type F

Max. load width: 1.50m x Max. load depth: 2.00m x Max. load height: 2.50m

Space requirements (excluding pallets)

Width: 2.10m x Depth: 2.41m x Height: 2.75m

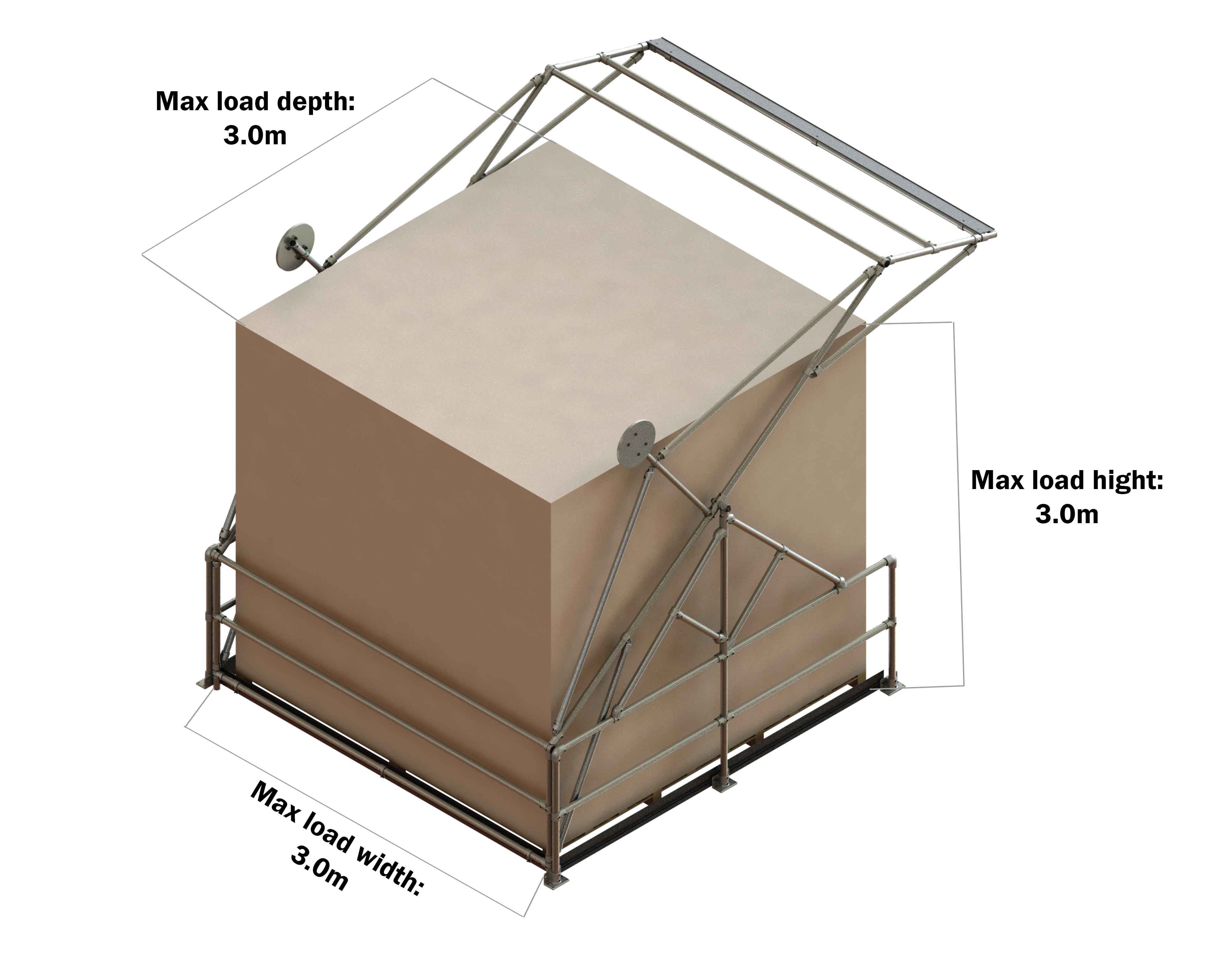

Pallet Gate Type H W

Pallet Gate - Type H

Max. load width: 3.00m x Max. load depth: 3.00m x Max. load height: 3.00m

Space requirements (excluding pallets)

Width: 4.7m x Depth: 3.5m x Height: 4m


Get in touch with our safety experts

Frequently Asked Questions

Trusted Fall Protection for Recognized Brands

  • Rolls Royce Logo
  • Selfridges
  • Toyota Car Logo
  • Amazon Logo
  • Jaguar Logo PNG8
  • Ikea Logo R2

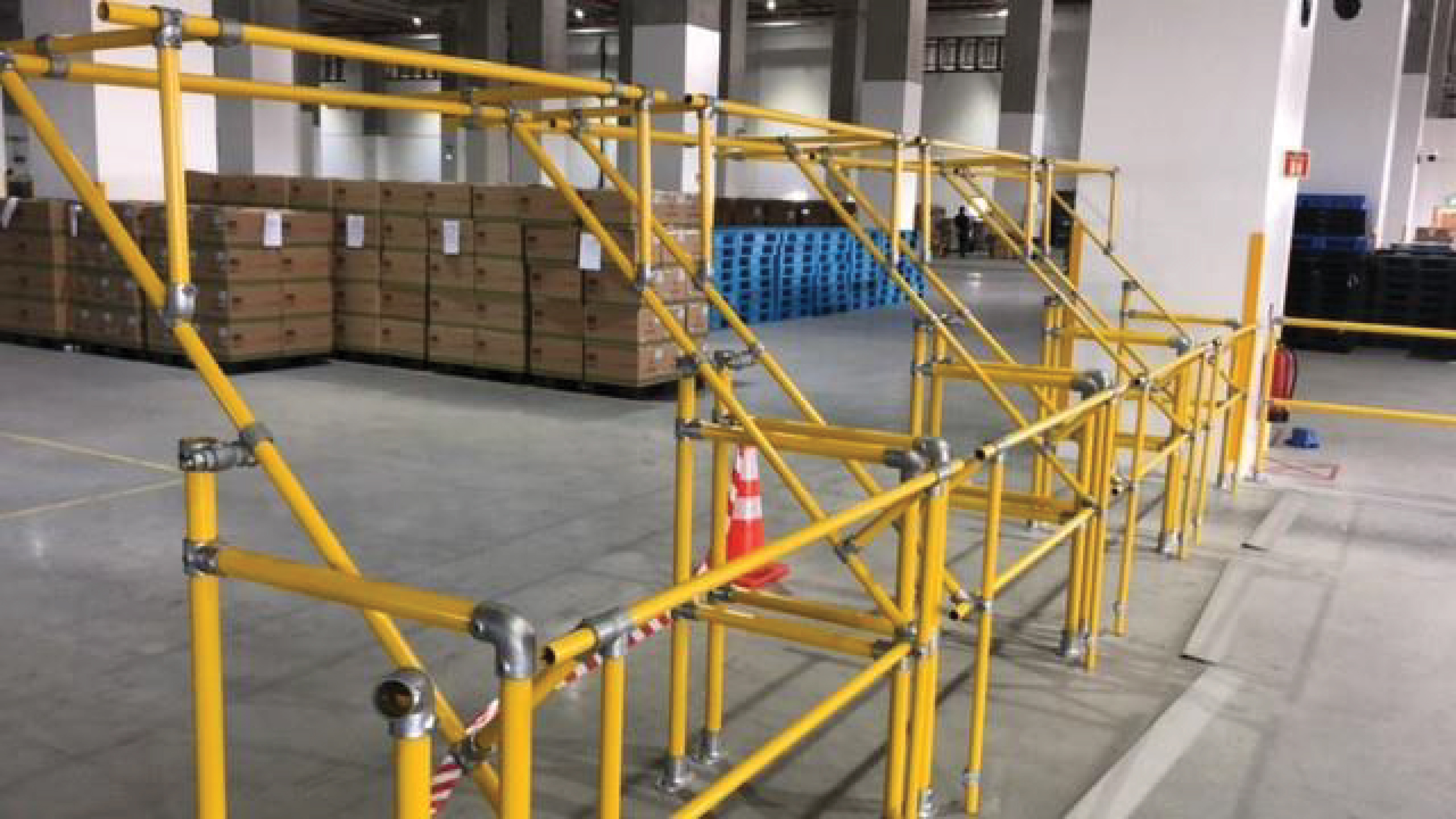

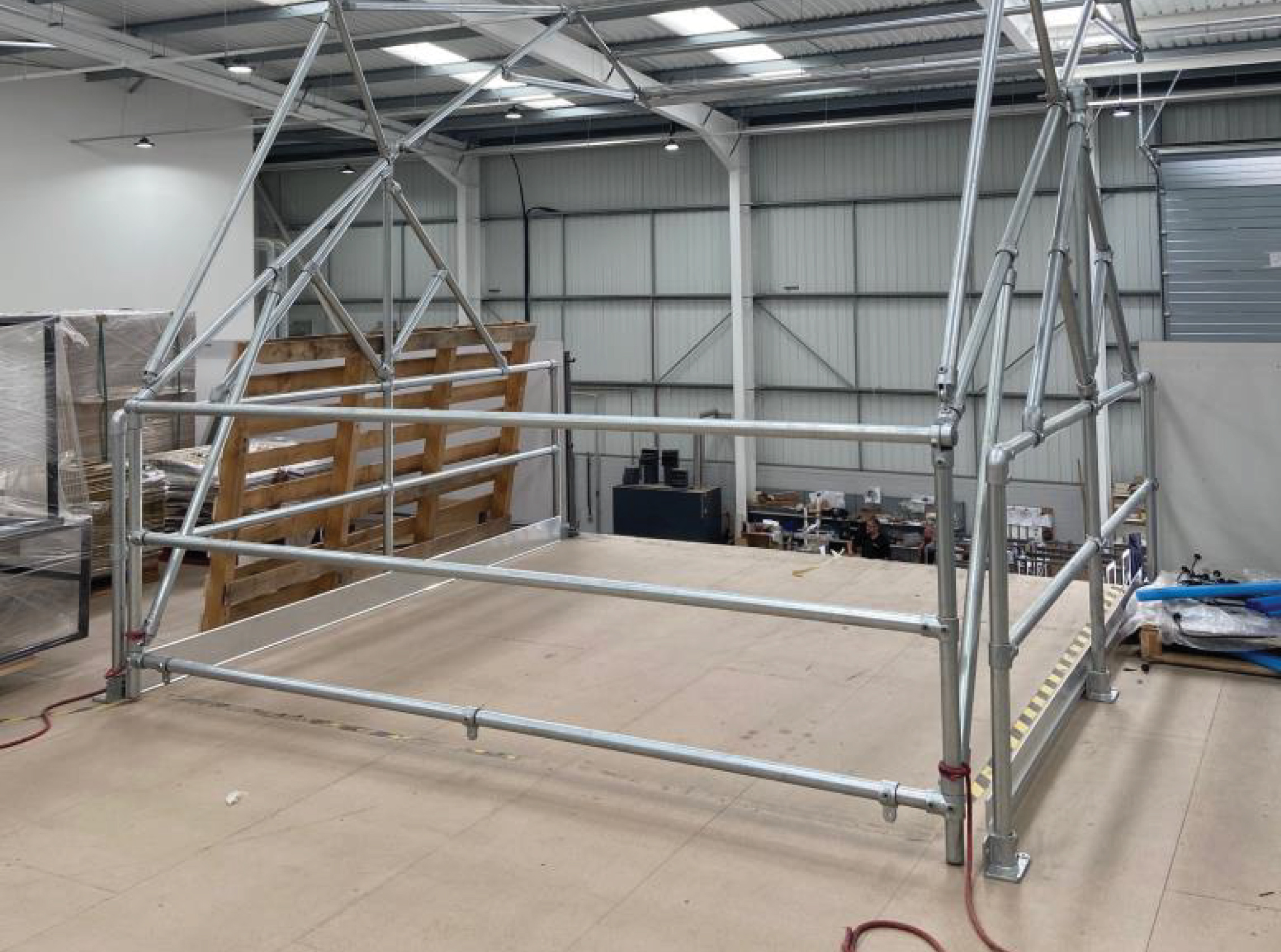

Kee Pivot® Case Studies

    Kee Pivot® Downloads

    Safety handrail

    Discuss your needs with our specialists

    Survey Design And Installation


    Surveys, Design and Installation

    We offer full design and installation services that include a complete on-site survey. Our fall prevention experts can assess your workplace for hazards and create a system that’s secure, dependable and fully compliant with Work at Height Regulations and international safety standards.

    We also produce comprehensive CAD drawings to help you visualise the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.
