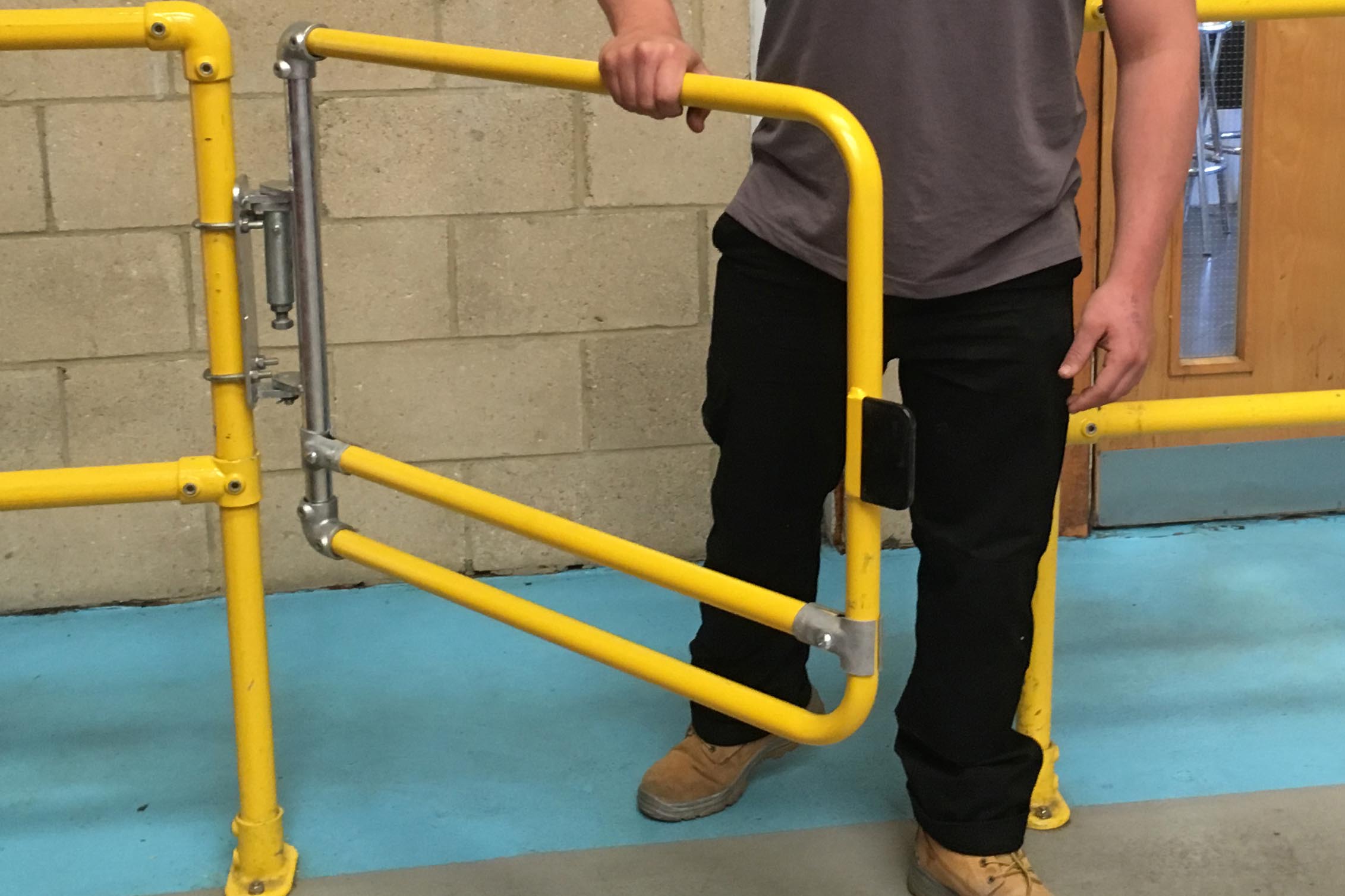

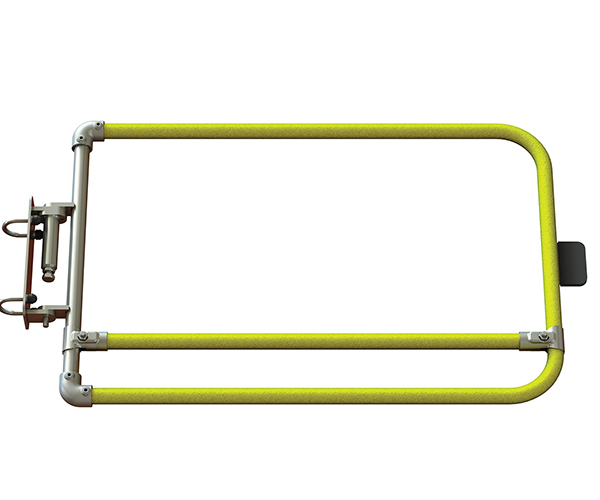

This gate is sized at 1m wide, and can be easily cut to size on site. The reversible hinges can be fitted on the left or right side of an opening, making installation easier and more flexible. The spring-loaded hinge mechanism ensures that the gate will always close, maintaining a safe barrier to protect people when working at heights.

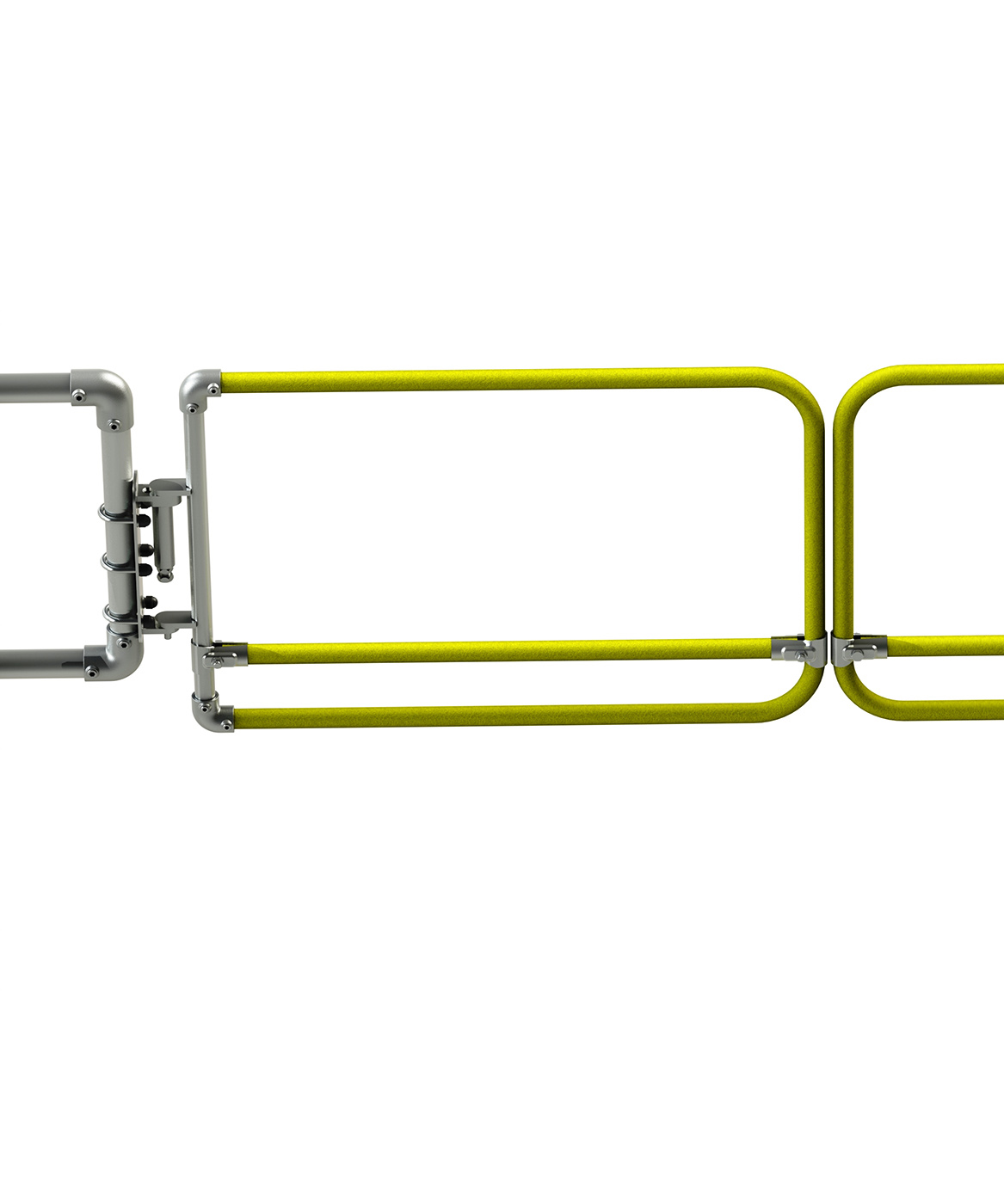

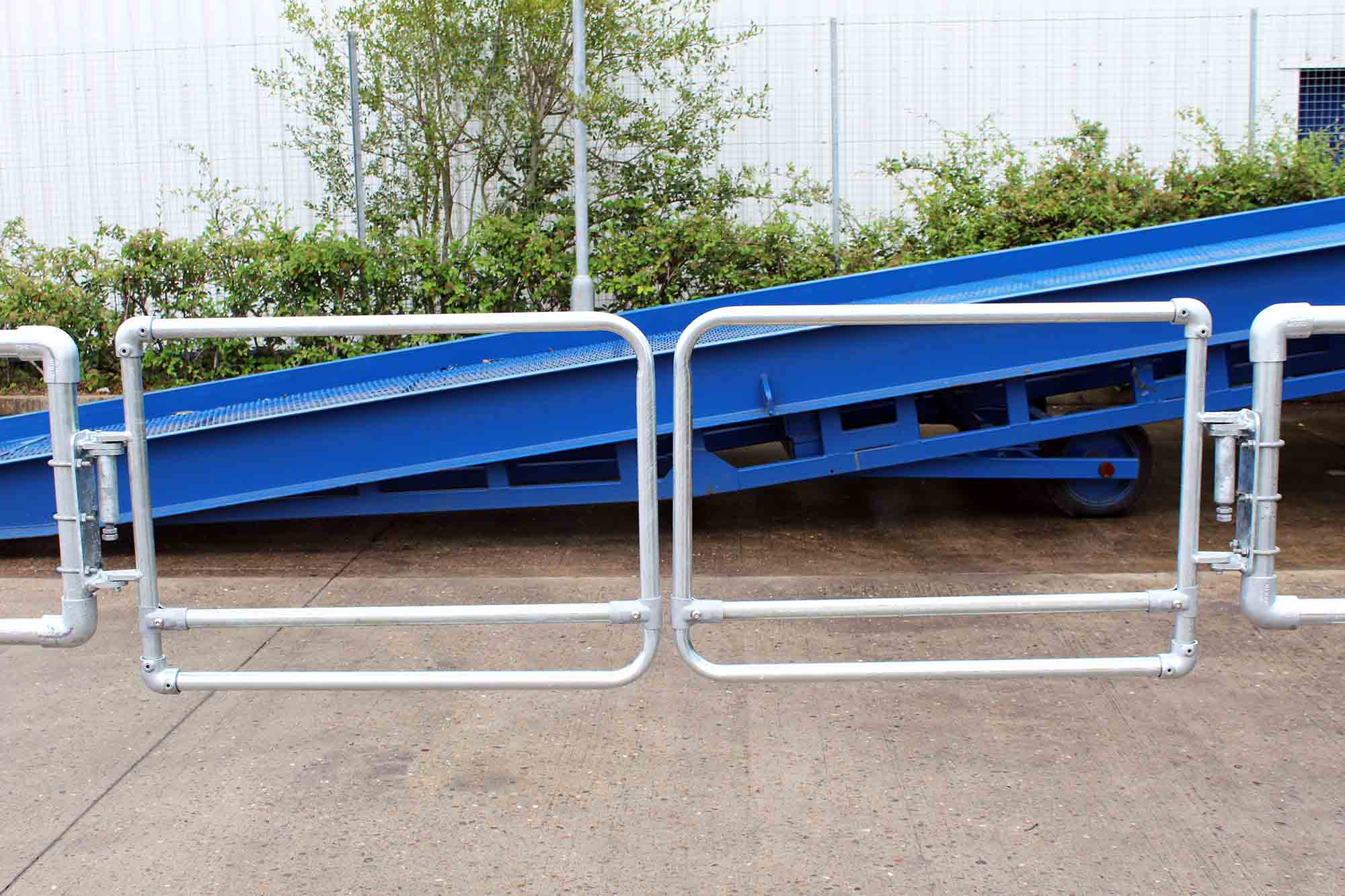

These double gates are sized at 2 x 0.9m wide and they can be easily cut to size on site. They work best for larger openings greater than 1m wide and the maximum width for double gates is 1.8m. They're spring loaded to automatically close behind the user, and its high performance hinge mechanism gives it extended life.

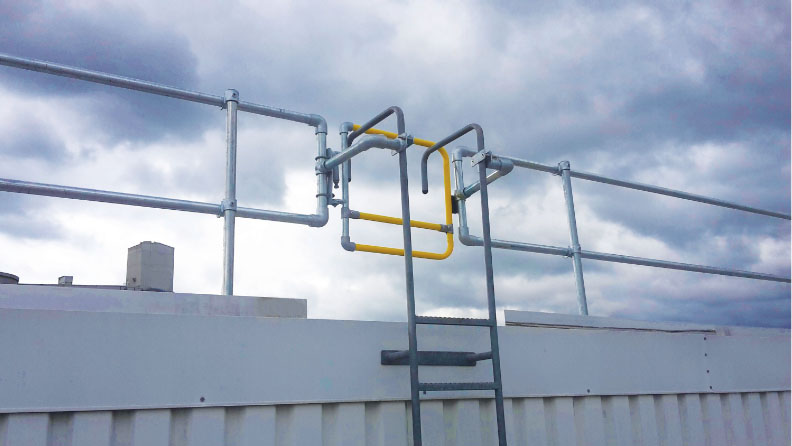

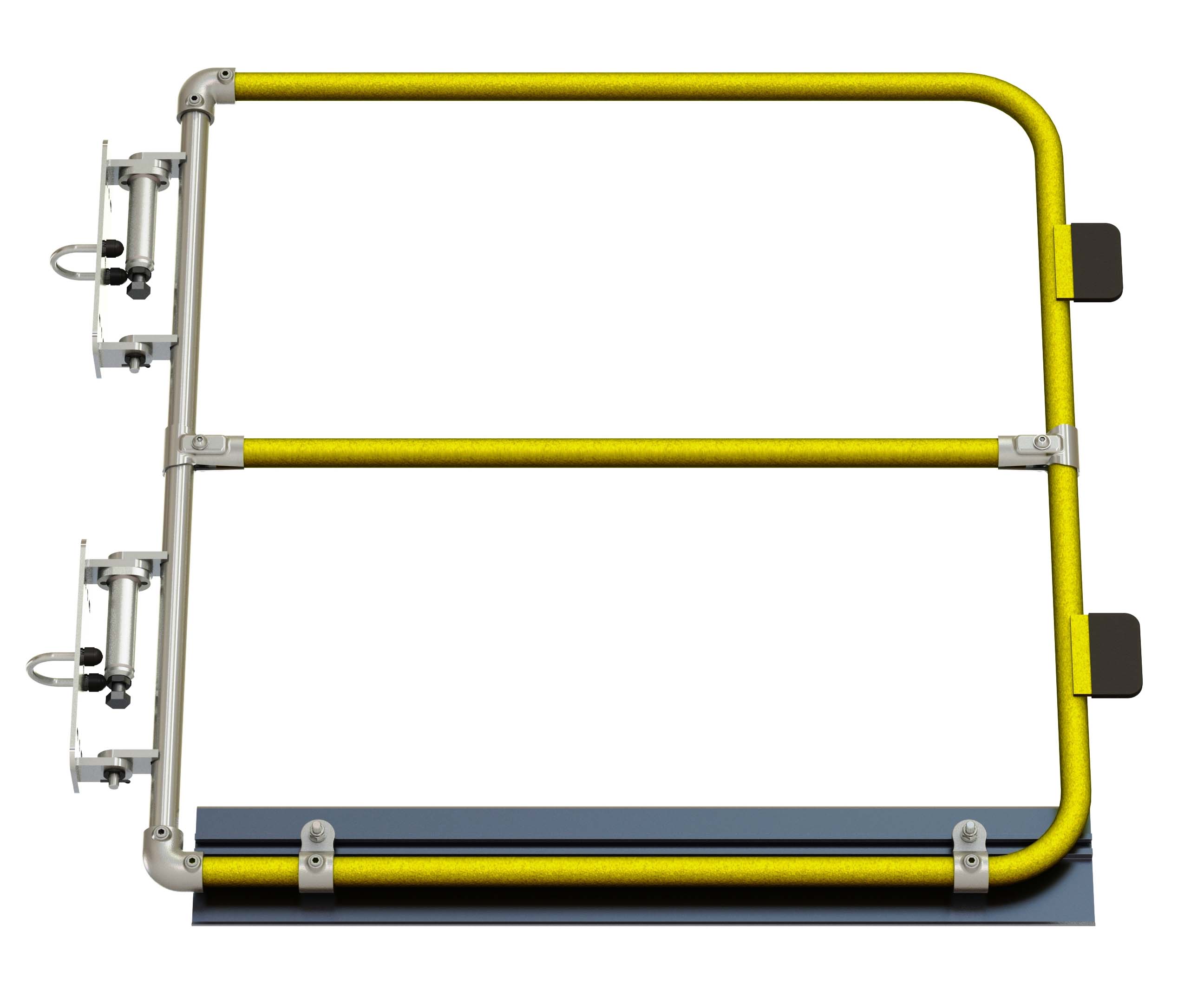

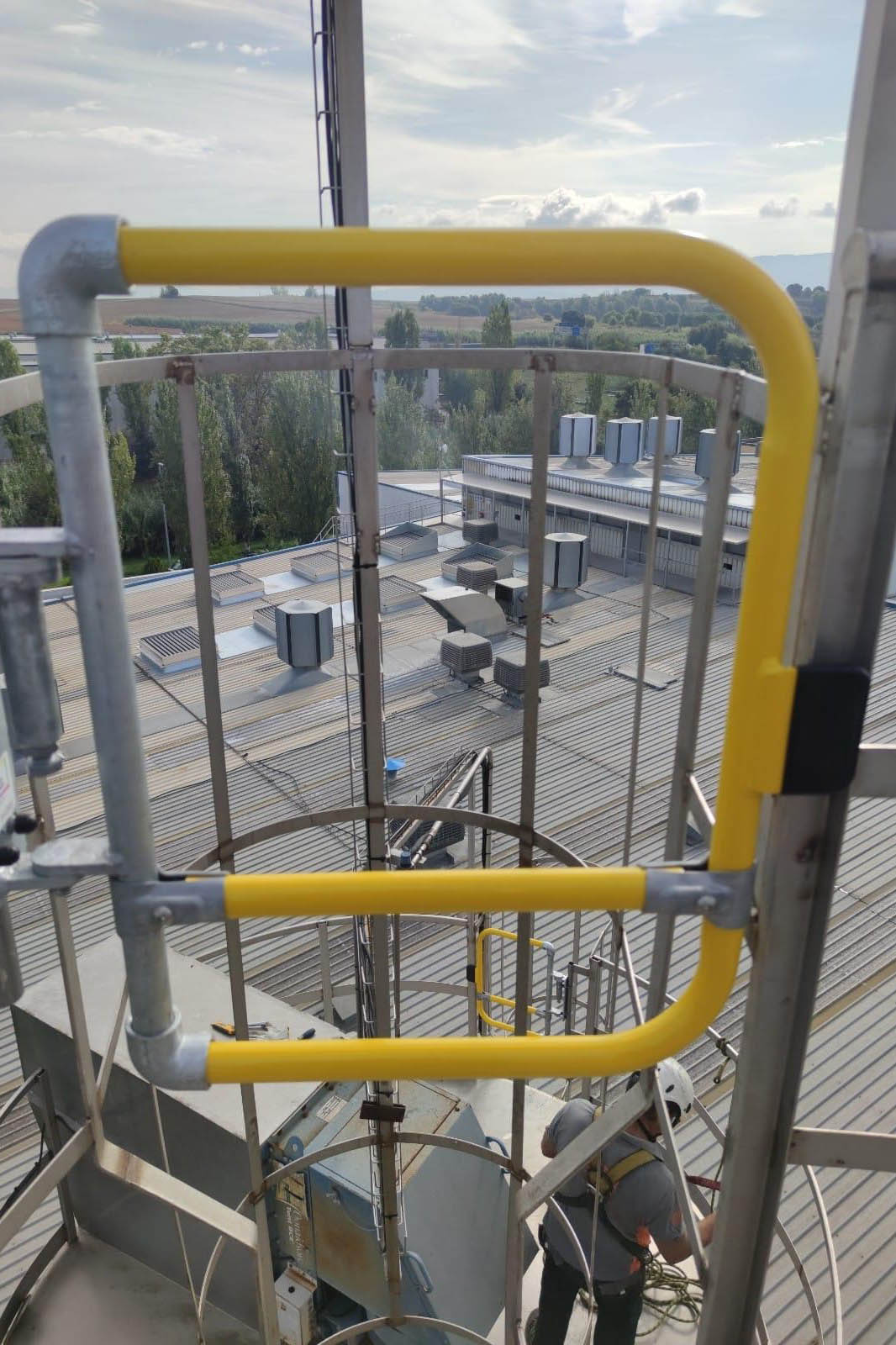

The full height gate is designed for ladders. Standing at 1100mm tall and featuring an aluminium toe board, it provides additional protection to those working at any level. The full height gate is fully adjustable and can accommodate openings up to 1m.
Our gates are spring loaded so will automatically close behind the user.
All safety gates are available in galvanised steel finish or yellow powder coated.
Choose between a single or double width safety gate so you have the right size gate for your space.
They are quick and easy to install which saves time and money.
The width can be cut to size on-site so they can be adjusted as needed
Can fit different surfaces (round or square) and can be used for external and internal applications.
Kee Safety runs one of the world’s leading test and training centers at its UK Head Office. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.
BS EN 14122 standard was revised in 2016 which had an impact on the design requirements of industrial safety gates. This revision stipulated that the distance between the bottom rail and the flooring must be less than 500mm. There are two ways to achieve this: use a full height gate, which fills that void or use our Kee Gate safety gate, which features a larger D bend to meet these requirements.

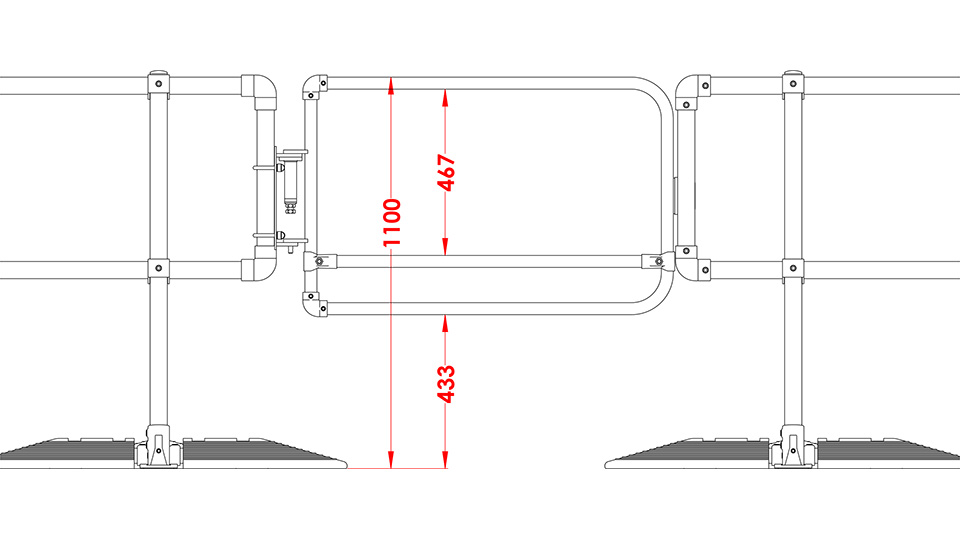

The gates supplied to meet the older BS EN 14122 standard should ideally be replaced or upgraded to meet the new 2016 standard. The drawing above shows dimensions of our Kee Gate safety gate.
Our Gates Are Made and Stocked in The West Midlands, England, UK. We’ve sold tens of thousands of our these, and we have many happy customers.
We keep enough stock to meet the demands of large projects, and small individual orders can often be delivered next working day.
| Document | Format |
|---|---|
| Resistance to repeated opening and closing in accordance with BS6375-2 | |
| Test Report - Kee Gate Single Gate SGEU600 | |
| Kee Safety Distribution Product Catalogue | |
| Kee Gate Self Closing Gate Brochure | |
| Kee Gate Safety Gates Brochure | |
| Kee Gate Installation Instructions | |
| Kee Gate Single & Double Gate Operation & Maintenance Manual | |
| Kee Gate Full Height Gate Operation & Maintenance Manual | |
| Kee Gate Testing of Fall Protection Systems BS EN 14122-3:2016 | |
| Kee Gate Single Gate Datasheets | |
| Kee Gate Double Gate Datasheets | |
| Kee Gate Full Height Gate Datasheets | |
| Self Closing Gate Compliance Requirements |
| Document | Format |
|---|---|
| Resistance to repeated opening and closing in accordance with BS6375-2 | |
| Test Report - Kee Gate Single Gate SGEU600 | |
| Kee Gate Testing of Fall Protection Systems BS EN 14122-3:2016 |
| Document | Format |
|---|---|
| Kee Safety Distribution Product Catalogue | |
| Kee Gate Self Closing Gate Brochure | |
| Kee Gate Safety Gates Brochure | |
| Self Closing Gate Compliance Requirements |
| Document | Format |
|---|---|
| Kee Gate Installation Instructions | |
| Kee Gate Single & Double Gate Operation & Maintenance Manual | |
| Kee Gate Full Height Gate Operation & Maintenance Manual |
| Document | Format |
|---|---|
| Kee Gate Single Gate Datasheets | |
| Kee Gate Double Gate Datasheets | |
| Kee Gate Full Height Gate Datasheets |
We offer full design and installation services that include a complete on-site survey. Our fall prevention experts can assess your workplace for hazards and create a system that’s secure, dependable and fully compliant with Work at Height Regulations and international safety standards.
We also produce comprehensive CAD drawings to help you visualise the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.
