Kee Klamp pre-assembled uprights for quicker and easier installation of handrails and safety barriers.

Pre-assembled Handrail Systems

The Kee Klamp^® Pre-assembled Uprights range has been specifically designed to supply an ‘off-the-shelf’, pre-constructed handrail system. The pre-assembled handrail uprights significantly increase the speed of installation, subsequently reducing our customers' labour costs. The uprights are constructed, as standard, to achieve a finished height of 1100mm, complete with a half-height horizontal mid-rail (550mm). These versatile pre-constructed posts can accommodate non-straight or uneven sites, such as slopes, making them the ideal solution for constructing ramps without tube bending. Most guardrail configurations can be constructed using a combination of the kits available.

Kee Klamp Handrail Kit | Kee Klamp Ready-Made-Handrail-Posts

Less Measuring

Most handrail configurations can be constructed using a combination of the pre-assembled posts available.

Easier Installation

The posts are supplied fully assembled, saving you the need to build the upright from individual components.

Quicker Completion

To speed up installation time further, we can provide rails cut to your specified length, saving you time cutting on site.

Why do you need Kee Klamp Pre-assembled Handrail Uprights?

Easy to install

Pre-constructed posts are easy to install and speed up the construction time of a safety barrier. There is no need to weld or bend tubing and unskilled labour can easily install sections.

Durable

Our pre-assembled uprights are constructed using the world-renowned Kee Klamp fittings, ensuring they will last. Kee Klamp fittings are manufactured to stringent standards and are TUV certified.

Variety of configurations

We have an extensive range of pre-assembled posts available to suit angles from 0 to 45 degrees and in three different baseplate alternatives.

Key features of Kee Klamp Pre-assembled Handrail Uprights

Utilise Kee Klamp

Kee Klamp fittings are galvanised inside and out with a proprietary coating to guarantee corrosion resistance.

No welding needed

Made from tubular fittings and standard tubes, the systems can be installed on-site without welding or special tools.

Install quickly

Quick and simple installation using the hexagon key provided.

Wide variety

Our extensive range of Kee Klamp pre-assembled posts suits angles from 0 to 45 degrees and is available in three baseplate variants: Top Fix, Side Fix and Core Bore.

Highest standards for safety railing systems

Our Pre-assembled Uprights are constructed using world-renowned Kee Klamp fittings, manufactured to the following standards:

Cast Iron Fittings or Castings - Comply with BS EN 1562 & 1563
Hot Dip Galvanised finish - Comply with BS EN ISO 1461

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centres at its UK headquarters. Run by a team of industry experts, this state-of-the-art facility ensures that Kee Safety products meet the needs of its customers. Kee Safety is committed to driving innovations to separate people from hazards.

Trusted Fall Protection For Recognised Brands

Kee Klamp Pre-assembled Uprights for Safety Barrier Systems Downloads

Document	Format
Kee Klamp Pre-assembled Uprights	PDF Download

Document	Format
Kee Klamp Pre-assembled Uprights	PDF Download

Frequently Asked Questions

- What can I construct using the Kee Klamp Pre-assembled Uprights?

  Kee Klamp Pre-assembled Uprights can be used for the construction of the following: • Safety barriers • Guardrails • Railing systems • Handrails • Demarcation systems • Factory & warehouse barriers • Walkway handrailing • Ramps and stairs
- What types of Kee Klamp Pre-assembled Uprights are available?

  The Kee Klamp pre-assembled uprights' range is very wide. The range consists 46 variants of pre-constructed handrail posts. Most railing systems can be constructed using a combination of the pre-assembled uprights available.
- What is the height of Kee Klamp pre-assembled uprights?

  The Kee Klamp pre-assembled uprights are supplied 1.1m in height.
- Can I buy rails in the exact length I need?

  Yes. We can provide rails cut to your specified length. Alternatively, we can supply the rails in stock lengths to be trimmed to suit as required.
- Do you provide load charts for railings constructed using the Kee Klamp Pre-assembled Uprights?

  Yes. The Kee Klamp Pre-assembled Safety Barrier Systems brochure includes the load charts. Our recommendations are based upon the rail diameter being BS EN 10255 medium wall tubing and the upright being BS EN 39 heavy wall tubing. They follow the Design Loads stated in BS 6180. The bay sizes are calculated using the relevant fitting or fixing configuration for the upright type. To achieve bigger bay sizes than those recommended, don't hesitate to contact Kee Safety Ltd for further details.

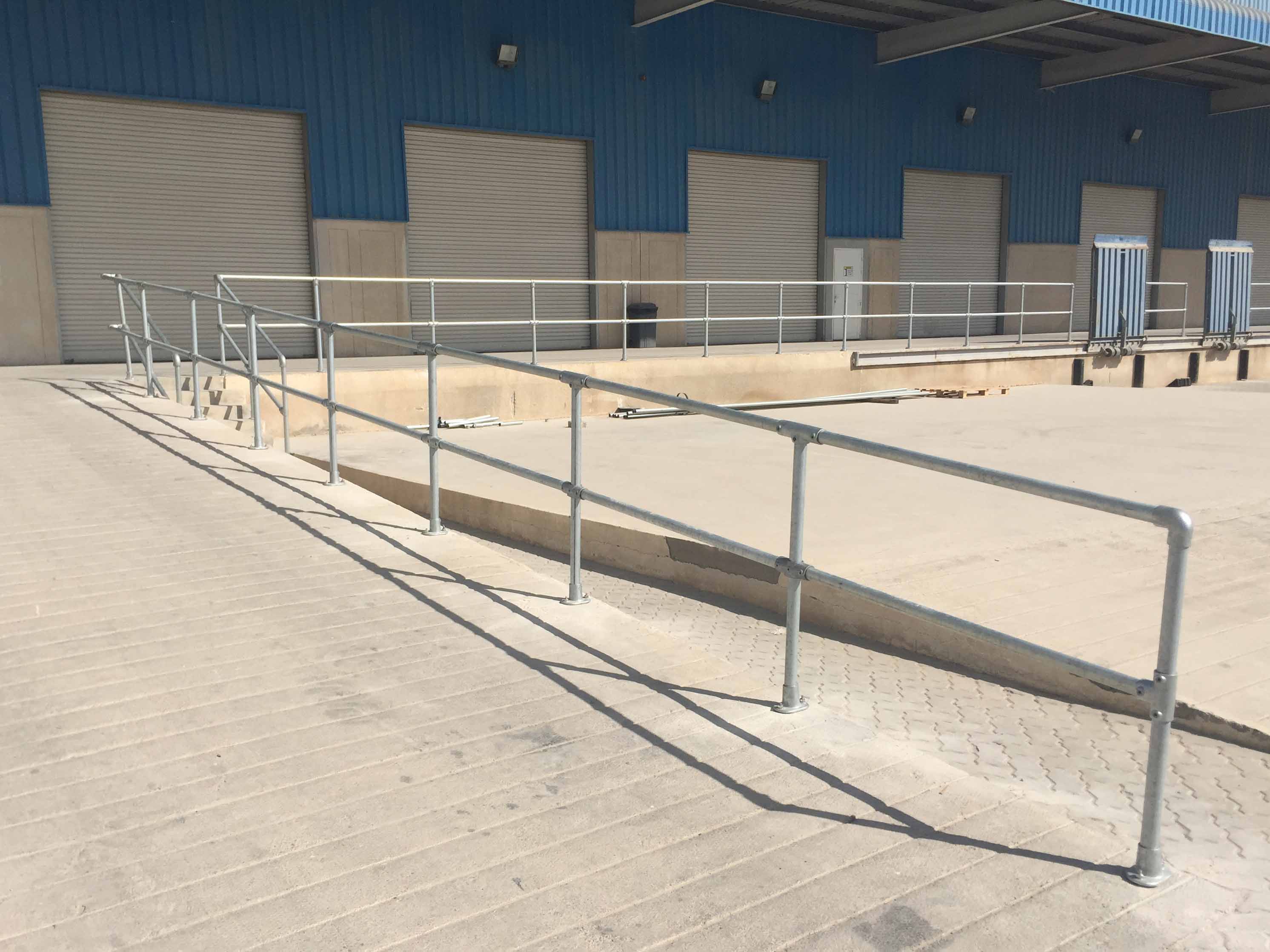

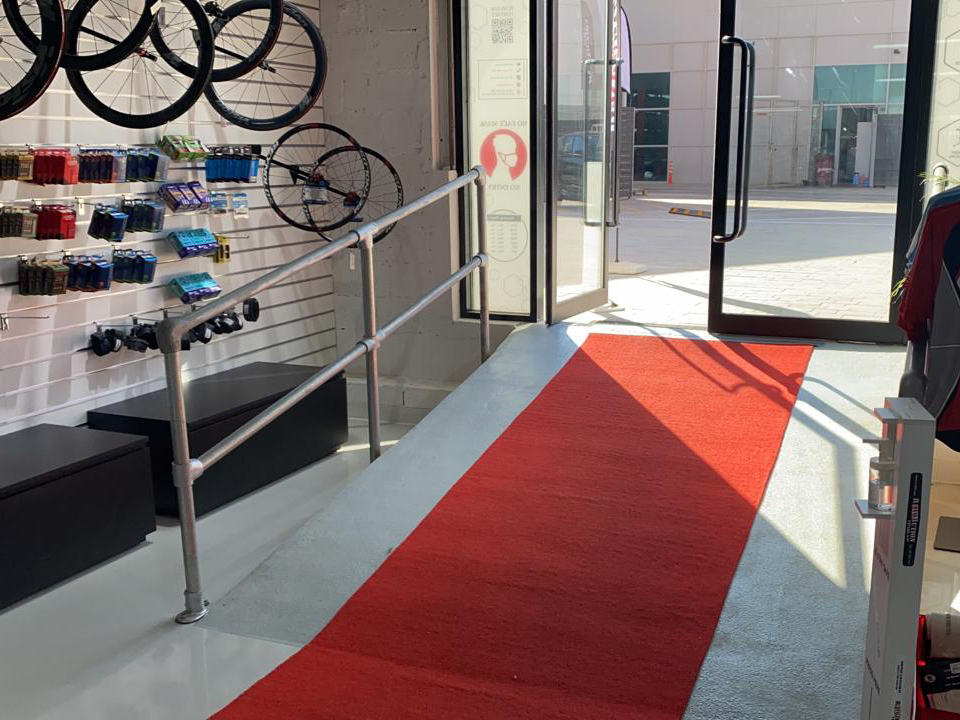

Examples of Kee Klamp^® Safety Barrier Systems
