Kee Cover

The Safety Solution for Roof Light Protection

Adaptable cover for roof lights on trapezoidal and standing seam roofs.

Fragile Roof Light Covers

Falls from height are a major cause of accidents and unfortunately falls through skylights happen so often. All building owners have a duty of care to ensure workers who need to access a roof are safe.

KEE COVER skylight cover has been specifically designed to provide an effective solution for covering unprotected roof lights without blocking out the light they are supposed to let into a building.

Design

KEE COVER provides protection against falls through fragile roof lights. Skylights are covered by a strong mesh panel mounted onto a metal frame. KEE COVER has been designed specifically for metal profile roofs where inline roof level skylights are common.

The mesh panel top sits onto a metal frame made from KEE KLAMP fittings and tube. The standard mesh panels are 2m long and 1m wide. For larger roof lights we offer extension panels, either 2m or 1m long x 1m wide.

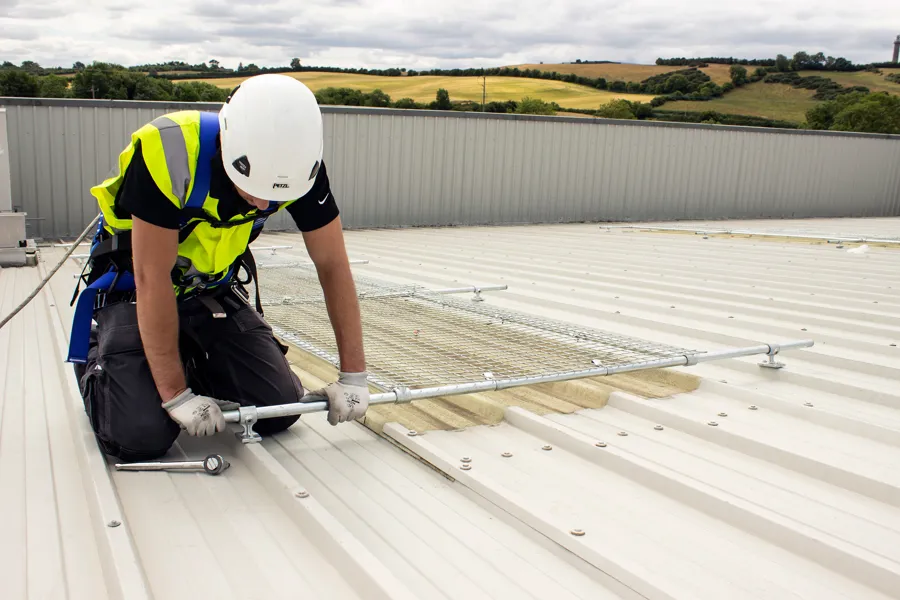

The KEE COVER  is designed to be assembled in-situ so is delivered in component form, thus making it easier to get up to roof level.

KEE COVER roof lights covers are available in two formats.

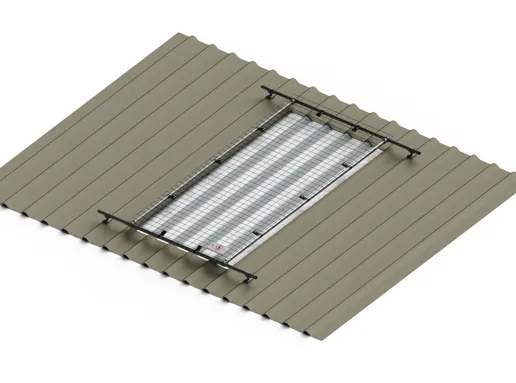

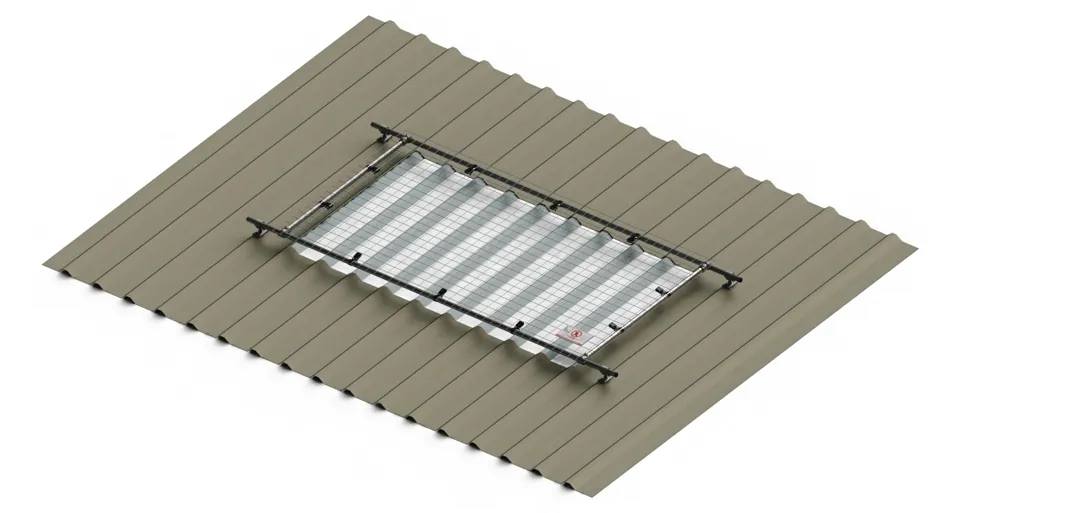

Standard Panels

Standard Panel fixes virtually flat to the roof surface.

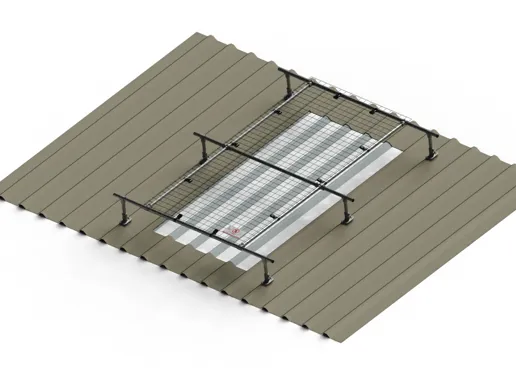

Raised Panels

Raised Panel is raised above the skylight which is mounted on small legs to give a greater distance between the mesh panel and the roof light. In the event of a fall this would help ensure the roof light is not damaged when the KEE COVER absorbs the impact.





Testing

KEE COVER roof light covers have been tested to the Class B criteria and loadings required in the ACR Red Book Test for Non-Fragility of Roof Assemblies. An additional 1200 joule test has been carried out to BS EN 1873. KEE COVER meets both of these test criteria.

Features and Benefits

  • Safety solution for covering roof lights on trapezoidal and standing seam roofs
  • Tested in accordance with the ACR Red Book
  • Easily assembled and fitted while on the roof
  • All components and mesh panels are hot dip galvanised for enhanced durability
  • Mesh panels do not block out light, keeping the building illuminated
  • Extension panels allow for extended width and lengths be covered, ensuring the roof surface is safe
  • Metal frame and panels will not go brittle thus delivering longevity for the installation
  • Variable height facility allows for use over different shaped roof lights
  • Tube can be colour coated if greater visibility is required

Product Codes

Kee Cover Panel - Raised 1 Metre Wide

Product Code Product Description Length Width Weight
KC21PMRA1 Kee Cover 2x1m Primary Module - Raised 2m 1m 30Kg
KC21XMRA1 Kee Cover 2x1m Extension Module - Raised 2m 1m 24Kg
KC11XMRA1 Kee Cover 1x1m Extension Module - Raised 1m 1m 17Kg

Kee Cover Panel - Standard 1 Metre Wide

Product Code Product Description Length Width Weight
KC21PMST1 Kee Cover 2x1m Primary Module - Standard 2m 1m 22Kg
KC21XMST1 Kee Cover 2x1m Extension Module - Standard 2m 1m 18Kg
KC11XMST1 Kee Cover 1x1m Extension Module - Standard 1m 1m 15Kg

Kee Cover Panel - Raised 2 Metre Wide

Product Code Product Description Length Width Weight
KC12PMRA2 Kee Cover 1x2m Primary Module - Raised 1m 2m 26Kg
KC12XMRA2 Kee Cover 1x2m Extension Module - Raised 1m 2m 20Kg

Kee Cover Panel - Standard 2 Metre Wide

Product Code Product Description Length Width Weight
KC12PMST2 Kee Cover 1x2m Primary Module Wide - Standard 1m 2m 22Kg
KC12XMST2 Kee Cover 1x2m Extension Module Wide - Standard 1m 2m 18Kg
