Kee Guard® Free-standing Roof Edge Protection

Free-standing roof edge fall protection system that uses counter-balanced weights and does not penetrate the roof membrane

Overview Benefits Standards Downloads FAQs Case Studies Gallery

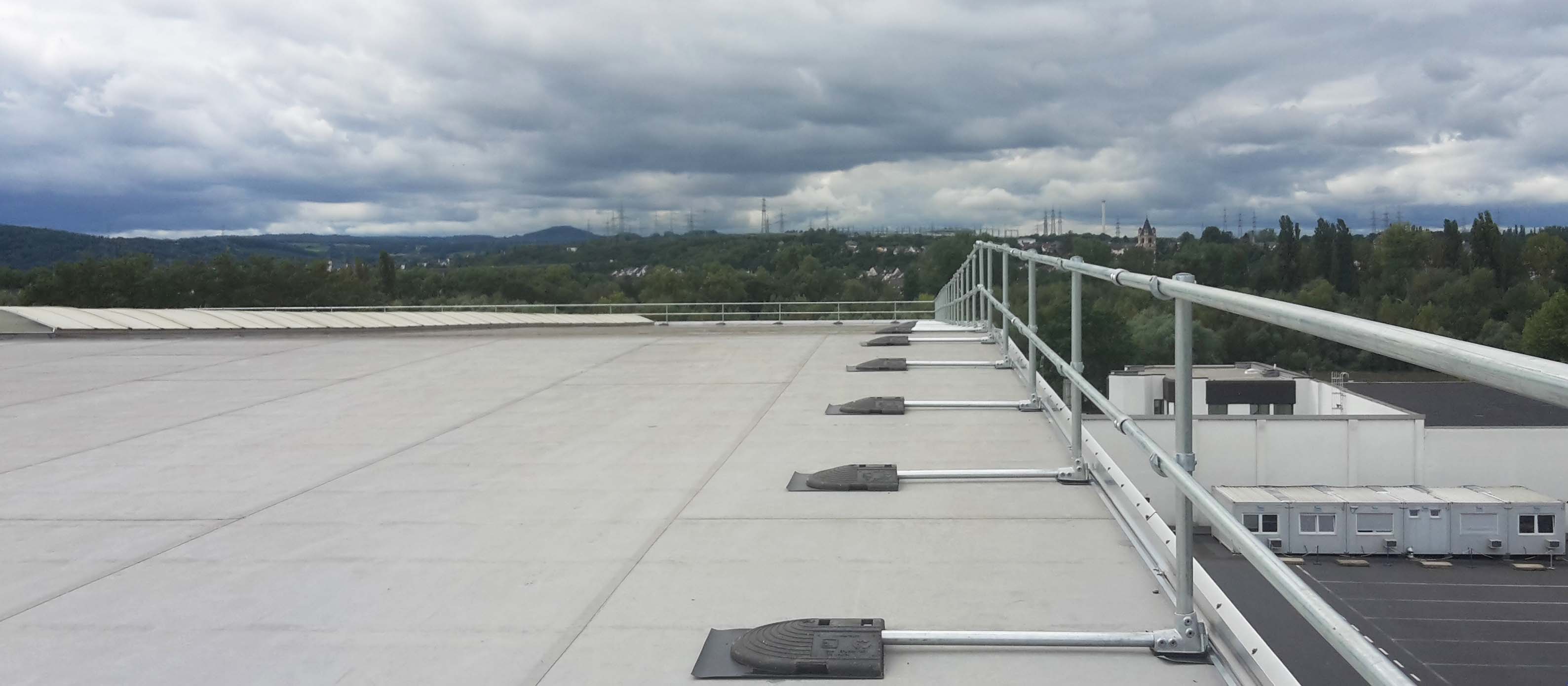

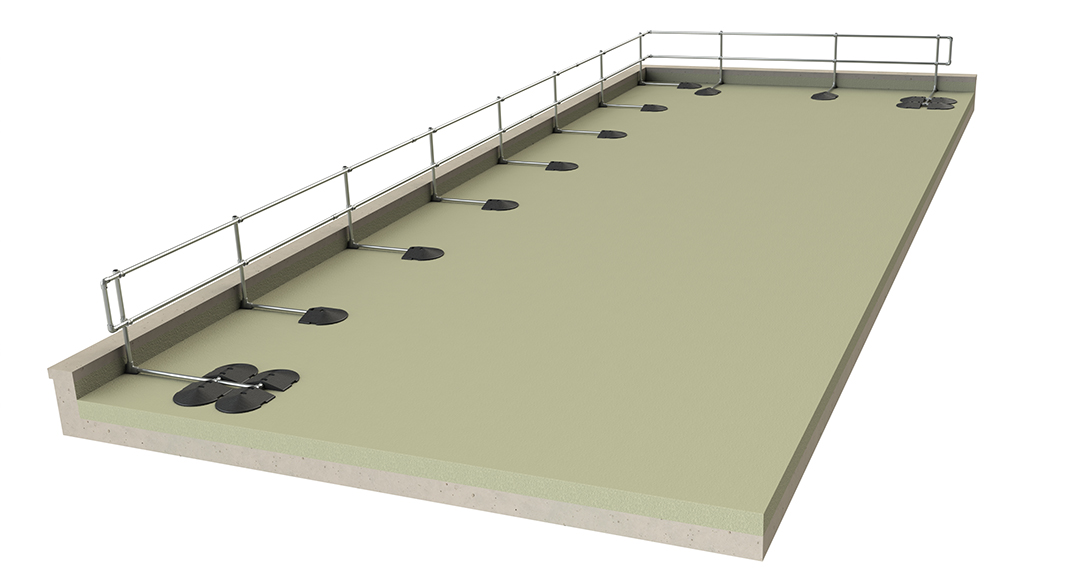

Kee Guard® Free-standing Roof Edge Protection

Raise the roof to a better safety system

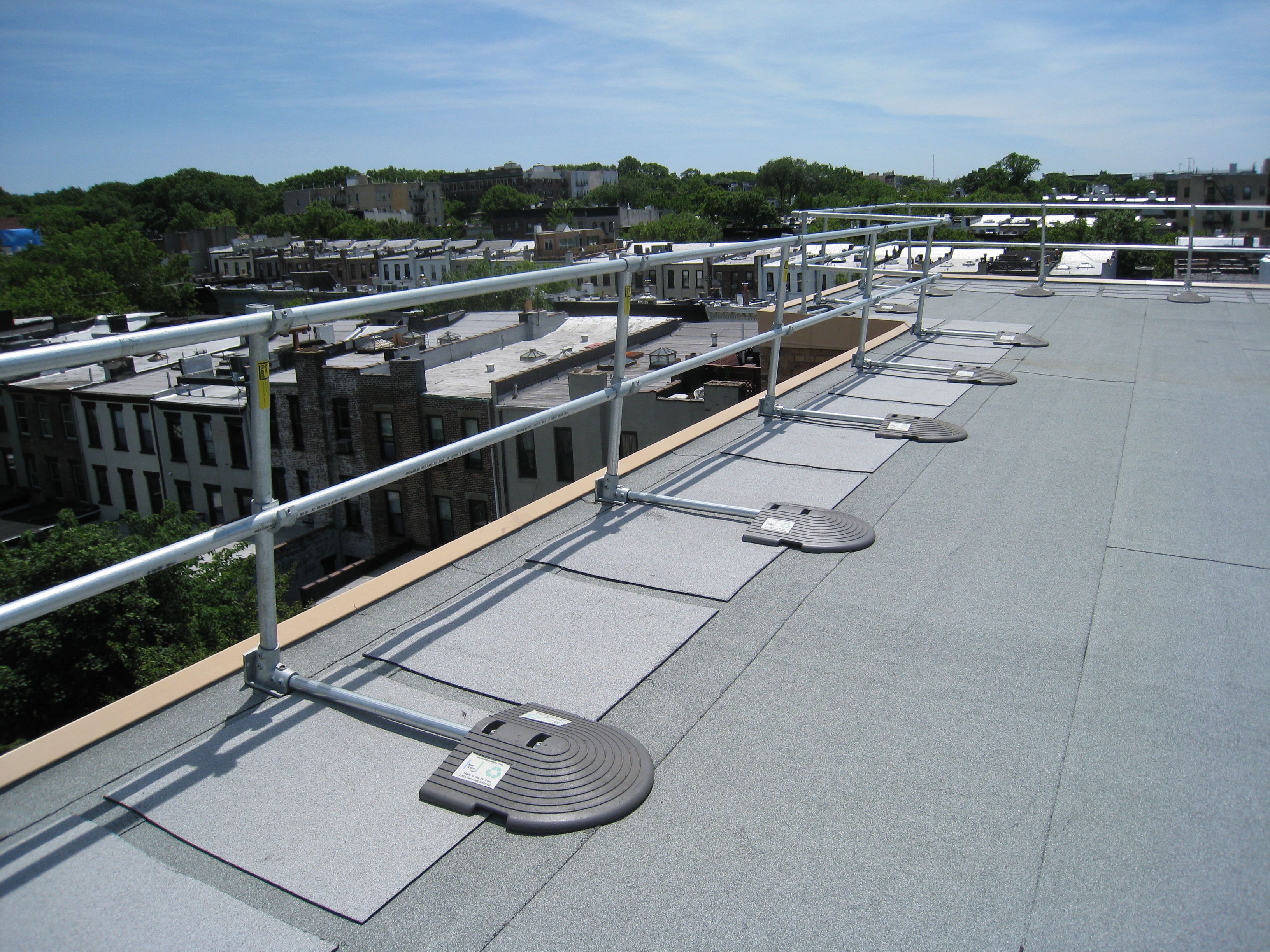

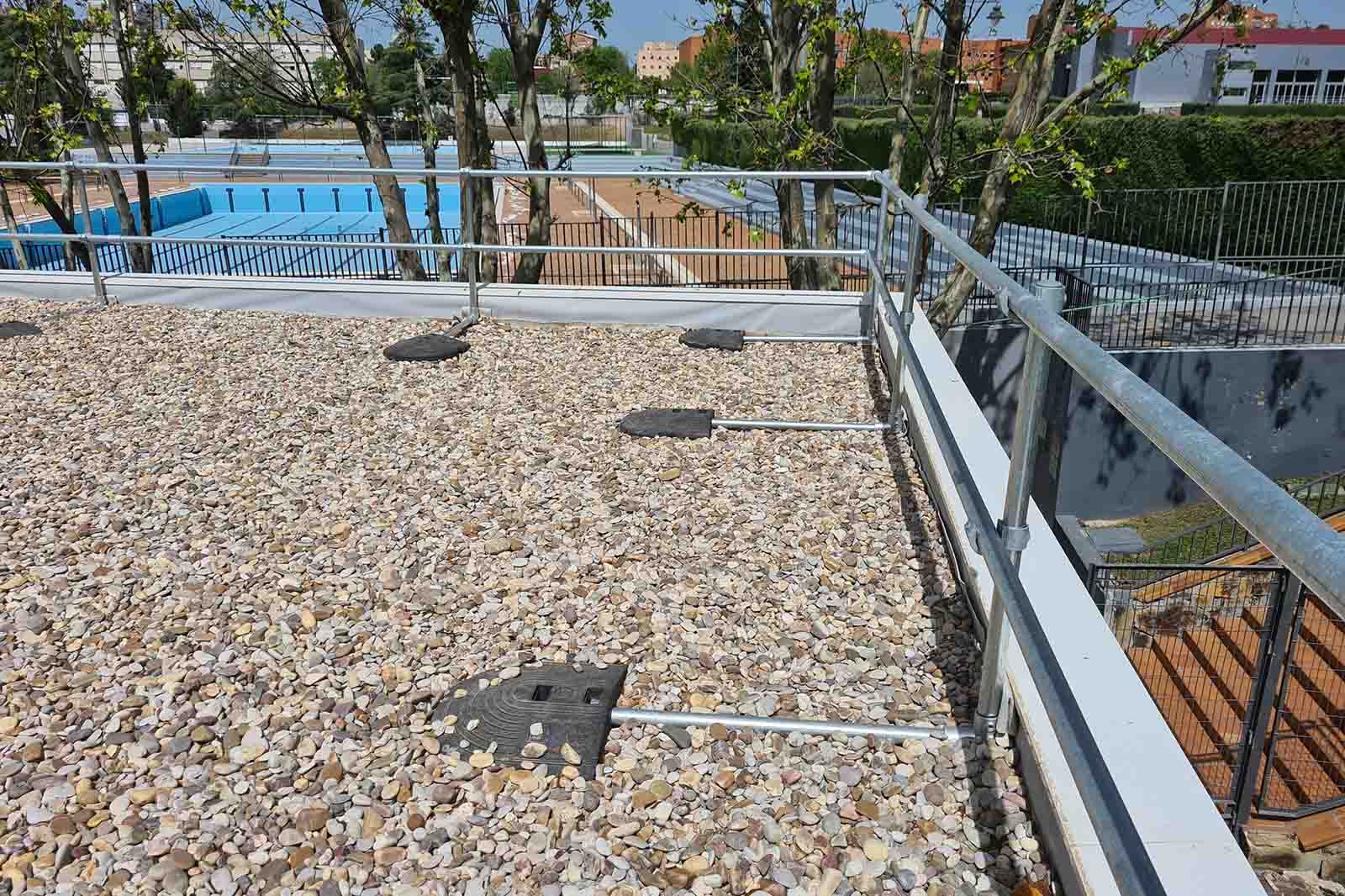

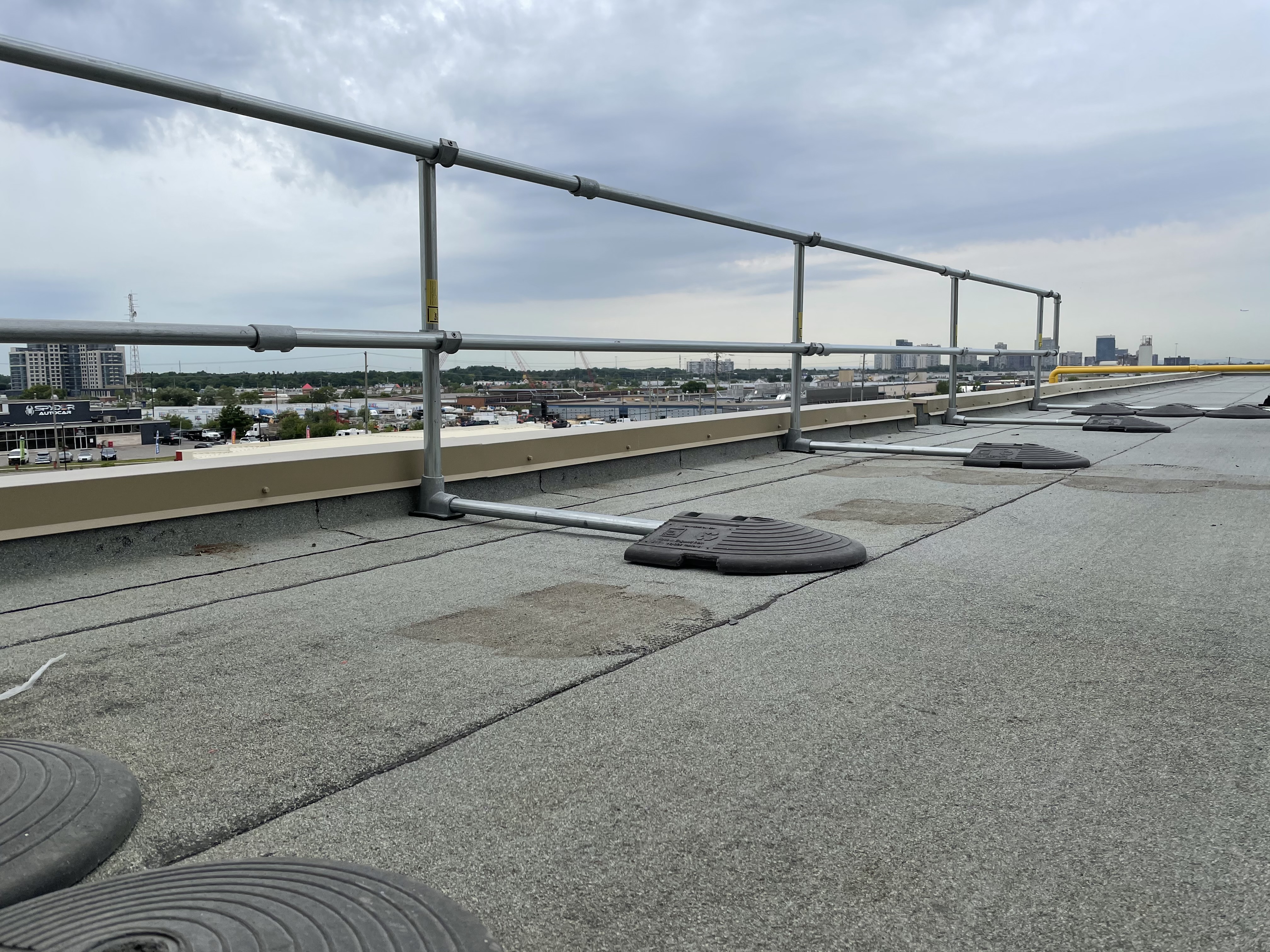

Kee Guard is a modular free-standing roof edge fall protection system that does not penetrate the roof membrane. It has been fully tested to BS, EN and OSHA compliance, and when correctly installed, ensures the safety of anyone who has to access a flat roof. No specialised work at height training required for the users.
Free standing roof edge protection| Kee Guard | rooftop guardrail | rooftop railings
Safety handrail

Get in touch with our fall protection experts

Free-standing Kee Guard System, Superior Rooftop Fall Protection

Unique system

Each system’s unique design provides permanent edge protection without the need to mechanically fix the system through the roofing membrane or building’s structure. Their simple design provides unrivaled strength, stability and safety and overcomes the problems associated with traditional systems such as having to drill and puncture the roof membrane which can lead to potential penetrative water damage and noise disturbance during installation.

Durable system

Kee Safety's guardrail connections are supplied with a galvanised finish carried out to BS EN ISO 1461 and ASTM A53: Hot Dip Galvanised Coatings Specification and Testing Methods, giving an average coating of between 65-85 microns. All cast clamps have Thread Koat applied to all tapped holes. All set screws are carbon steel and have Kee Koat protection applied to ensure minimal maintenance.

Versatile system

All systems have been specially designed to fit any shape and size of flat and pitched roofs (up to 10° pitch), even circular designs. The system can also cope with changes in levels, roof falls and difficult details such as ductwork passing over the roof edge and cable trays/plant mounted at the roof edge. The flexibility of the counterweight & Kee Klamp design allows the systems to be used on plant congested or complex detailed roofs.

Key Features of Kee Guard Free Standing Roof Edge Protection

Cantilever design

Free-standing Kee Guard systems are built using counter-weight engineering. Their simple cantilever design provides superior strength and safety in even the harshest of environments.

Compliant to International Safety Standards

Meets and exceeds the World's most rigorous safety standards, including BS, EN and OSHA standards for fall protection guardrail.

Wind calculated

Installations are wind speed calculated to ensure compliance with the BS EN 13700 standard that requires wind loadings calculations relating to the topography, height and location of the project.

Corrosion resistant

All fittings are galvanized to BS EN ISO 1461 and equipped with case hardened steel setscrews. For harsher environments we offer an aluminium option.

Easy to install

Minimum components, including unique open style fitting, allows for quick installation which keeps costs down.

Constructed with simple tools

No welding, bending or threading on site and no special tools are needed for construction. Recycled PVC weights are easy to handle and position which reduces installation time.

Modular flexible design

Sections can be easily added or taken down. This allows for reconfiguration on site if needed to suit the new edge protection requirements or for reconstruction elswhere.

Environmentally friendly

Bases are made from recycled PVC. Steel railing and components can be fully recycled.

Kee Guard Collective Fall Protection

A free standing collective fall protection system that does not penetrate the roof membrane.

Trusted Fall Protection for Recognized Brands

  • Rolls Royce Logo
  • Toyota
  • Selfridges
  • Amazon Logo R1
  • Ikea Logo R1
  • Loreal
  • Jaguar Logo PNG8
BG (1)

Get in touch with our safety experts

Highest standards for off-the-ground safety

  • EN ISO 14122 Part 3
  • EN 13374 Class A
  • BS 13700 : 2021 Permanent counterweighted guardrail systems – Specification
  • BS 6399 : Part 2 Code of Practice for Wind Load
  • EN 1991-1-4
  • NF E85-00
  • OSHA Reg 29 CFR 1910.23 (E) (1); (E) (3) (IV)
  • OSHA Reg 29 CFR 1926.501 (b) (1); (b) (2) (ii)
  • OSHA Reg 29 CFR 1926.502 (B) (1) - (B) (14)
  • AS 1657:2018
  • Wind loading in accordance with AS/NZS 1170.2

Latest Technology

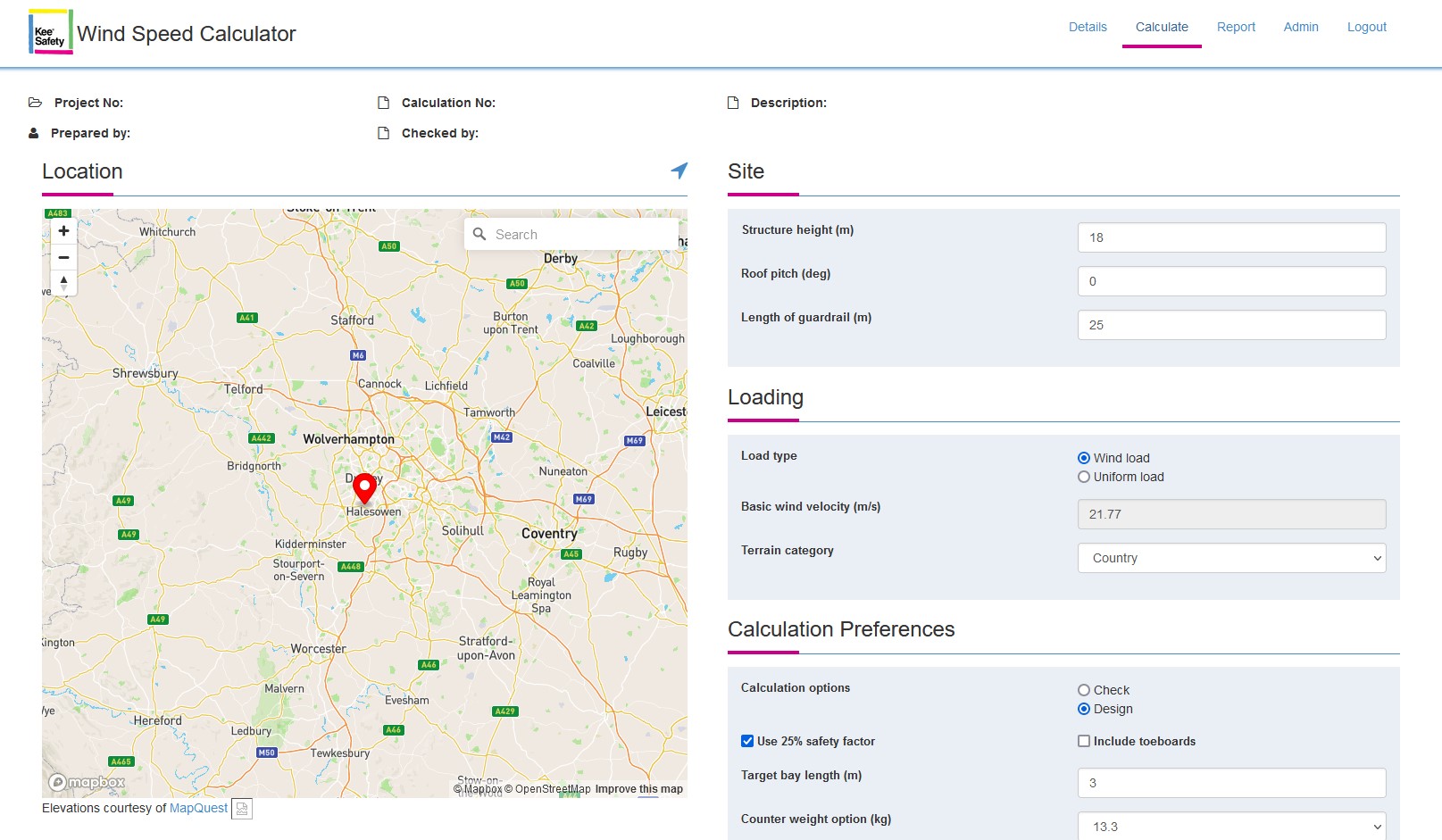

Wind Speed Calculator

One of the key points set out in the BS 13700 states that when you specify and install a permanent counterweighted guardrail, you need to carry out a site specific wind calculations. This means you need to take into account location, height of building and exposure level.

Kee Safety offers a FREE wind calculation to the new BS 13700 standard and issues the FREE report upon purchase of a Kee Guard system.

As a manufacturer of counterweighted edge protection, Kee Safety naturally ensures that our range of Kee Guard free standing rooftop guardrail systems comply with all relevant global standards and legislation,  including the BS 13700:2021.

Our team can help you with a site-specific wind speed calculation, as well as provide assistance throughout the entire project.



Contact us to discuss your project
Kee Guard Case Study SG
We installed Kee Guard Freestanding Edge Protection on a roof of the Ikea Goyang store, South Korea. The Kee Safety Team was involved in all aspects of the project, from designing to installing the system. Kee Safety provided us with wind load calculations and construction drawings, and also supervised the installation on-site. We were impressed with high quality of the product and we wouldn’t hesitate to recommend the Kee Guard system again.
Pele Lee, Material Manager at Wonpoong C&S Co Ltd.

Kee Guard Downloads

Frequently Asked Questions


Discuss your needs with our specialists


Kee Guard Case Studies

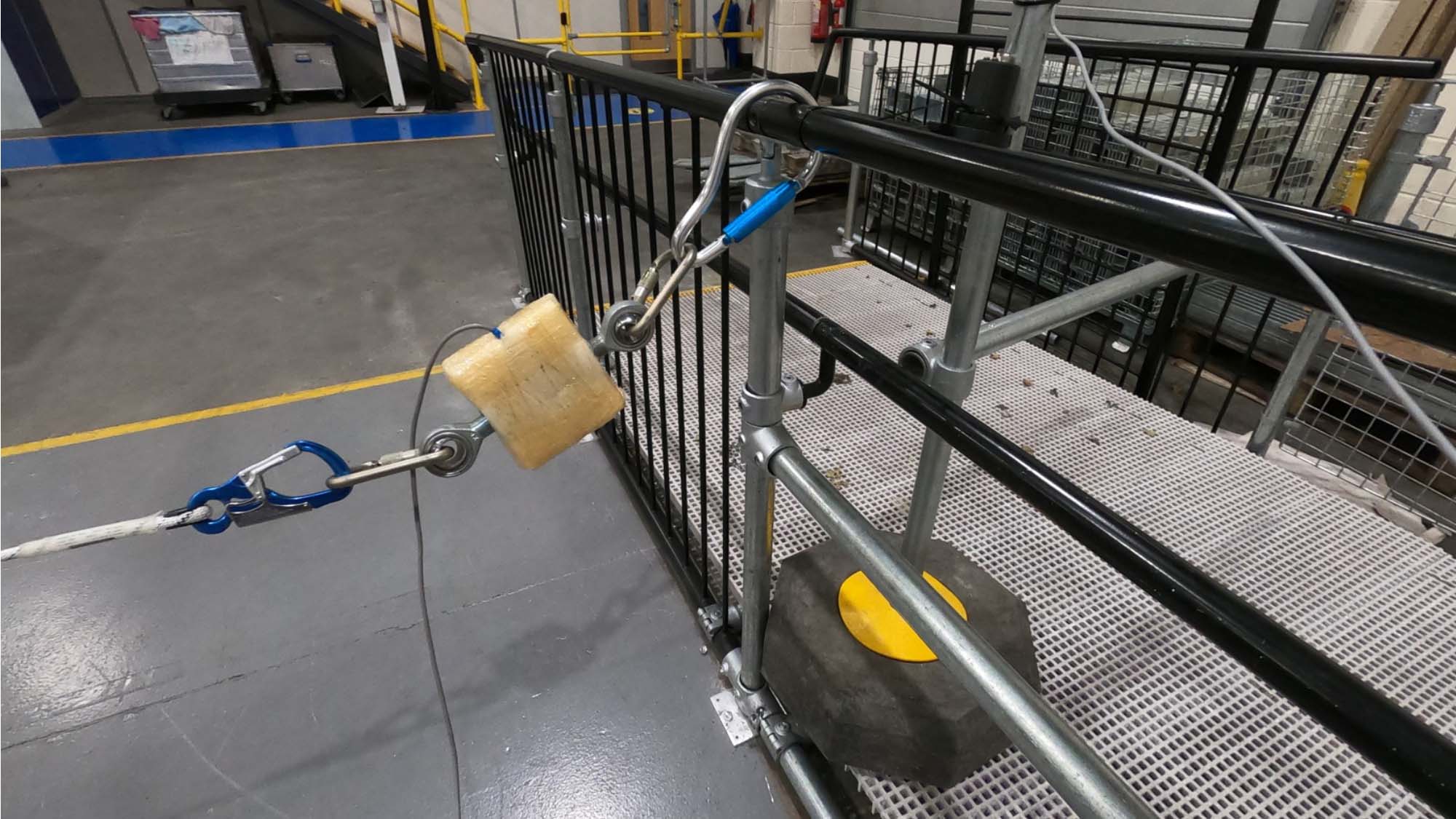

    Kee Safety Product Testing

    Certified at our advanced testing facility

    Kee Safety runs one of the world’s leading test and training centres at its global headquarters. Run by a team of industry experts, this state-of-the-art facility ensures that Kee Safety products meet the needs of its customers. Kee Safety is committed to driving new innovation with the purpose of separating people from hazards.

    Learn about Our Test Center

    Product Gallery

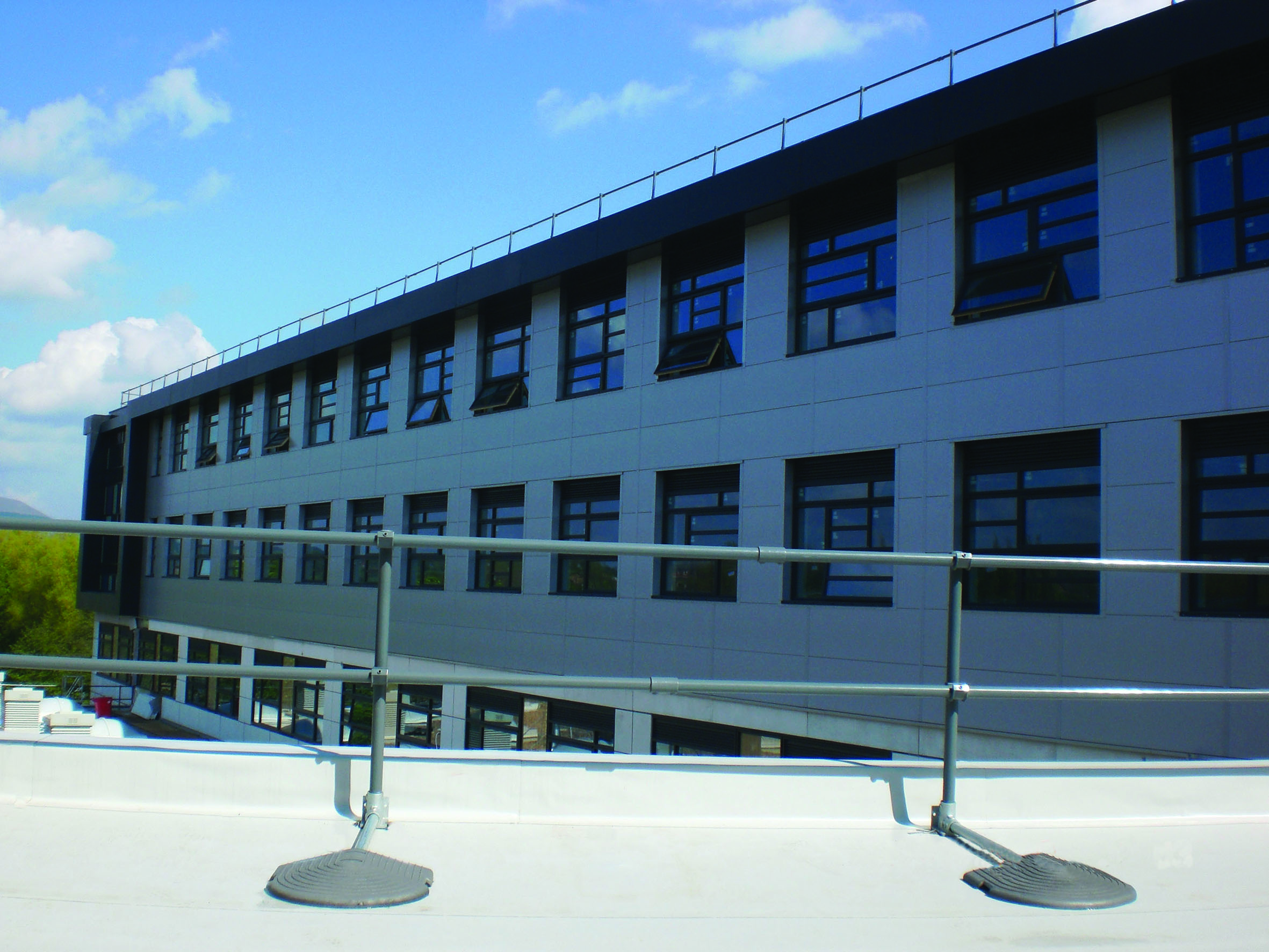

    KS KGU 1789
